2.6 Maximum Static Pressure for Pump Heads

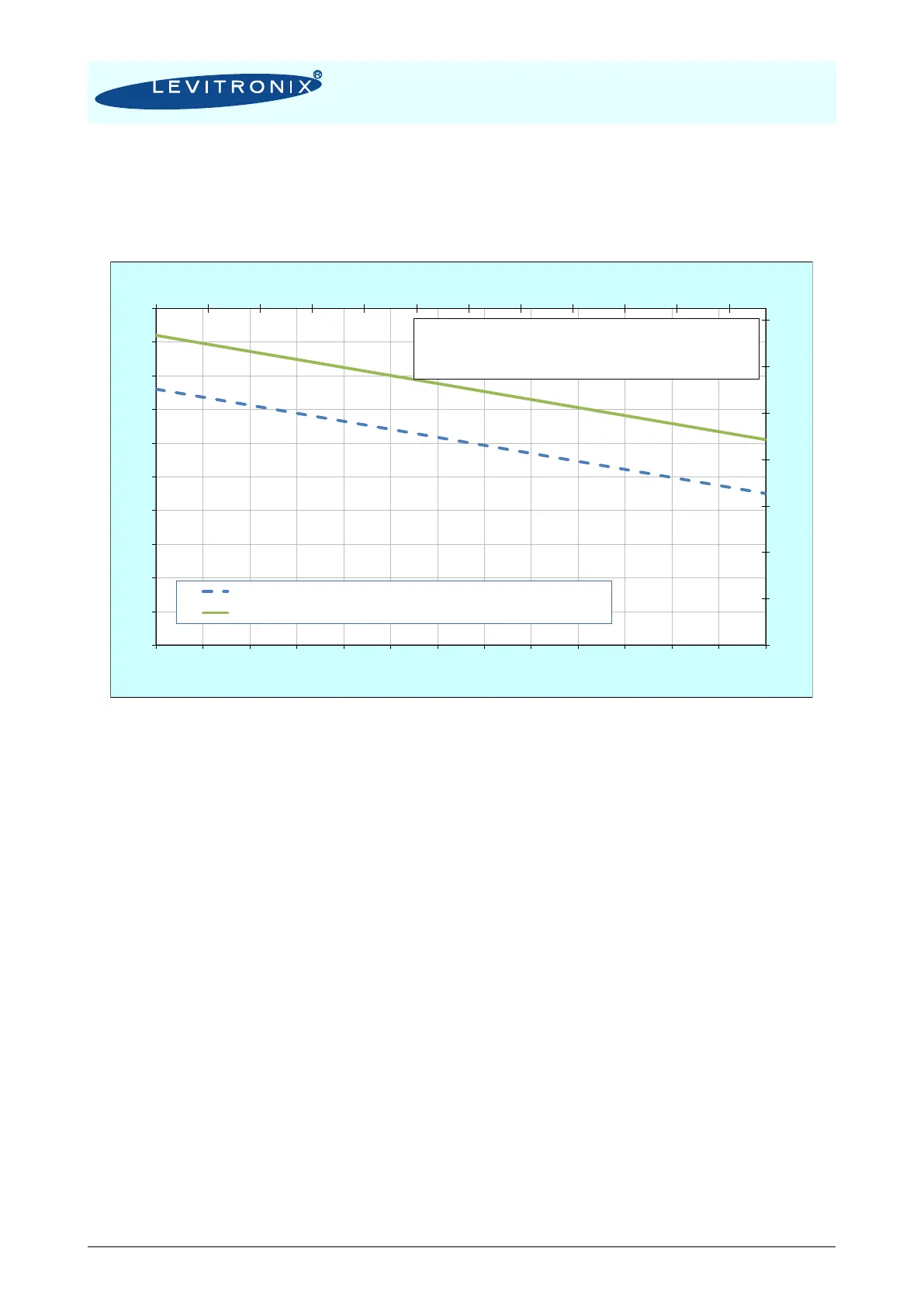

Figure 10: Specification for maximum static pressure of pump heads LPP-2000.6/7
(Pressure limits only valid for pump head mounted on motor)
0
20
40
60
80
100
120
140
77 87 97 107 117 127 137 147 157 167 177 187
0
1
2
3
4
5
6
7
8
9
10
25 30 35 40 45 50 55 60 65 70 75 80 85 90
[psi]
[°F]
[bar]
Liquid Temperature in [°C]
Max. Static Pressure for LPP-2000.6 (PFA+PP Housing, SS Screws)
Max. Static Pressure for LPP-2000.7 (PTFE Housing, SS Screws)
Safety Factor = 1.3 (according to EN12162)
Limitation: Given by deformation. Burst pressure is significantly higher.
Ambient Temp = 25 C
Note: Pressure limit only valid for pumphead mounted on motor
