User Manual for BPS-2000
www.levitronix.com
PL-4021-00, Rev03, DCO# 15-235
4.1.2 General Installation Instructions
Hazardous voltage may be present.
Always isolate the electrical power supply before making or changing connections
to the unit. To remove the power it is recommended to use an isolating device.
Hazardous voltage is present until 60 sec after switch off. Do not handle the
controller during this time.
The controller housing must be properly grounded. Use the specified screws on
the feet of the controller housing.
Incorrect assembling of the “POWER INPUT” connector
short circuit possible.
Assure that the correct
before it is plugged in.
1. Connect the protective earth wire with a crimp-type end on the specified earth screw (see
Figure 28) on the feet of the controller (see also protective earth labels on controller).
2. Connect the two motor connectors (sensor and power) to the controller. Assure that the
“POWER OUTPUT” connector from the motor is correctly aligned with the connector of the
controller before it is plugged in.
3. Connect the AC power input connector. Make sure that the pin connections are correct:
- 1 x 200-240V (1-phase)
L1 (
L), L2 (
N), PE (= Protective Earth)
- 3 x 200-240V (3-phase delta voltage)
L1 ,L2, L3, PE (lines can be switched), star-voltage = 115 139V AC
- Minimum Wire Gauge = AWG 14 (cooper diameter = 1.63 mm, cross section = 2.08 mm
2
)
- For usage of external circuit breakers consult Section 3.2.5.
4. To secure the connectors, tighten all retaining screws according to the torque specifications
in Table 11 (for LPC-2000.1) and Table 12 (for LPC-2000.2).

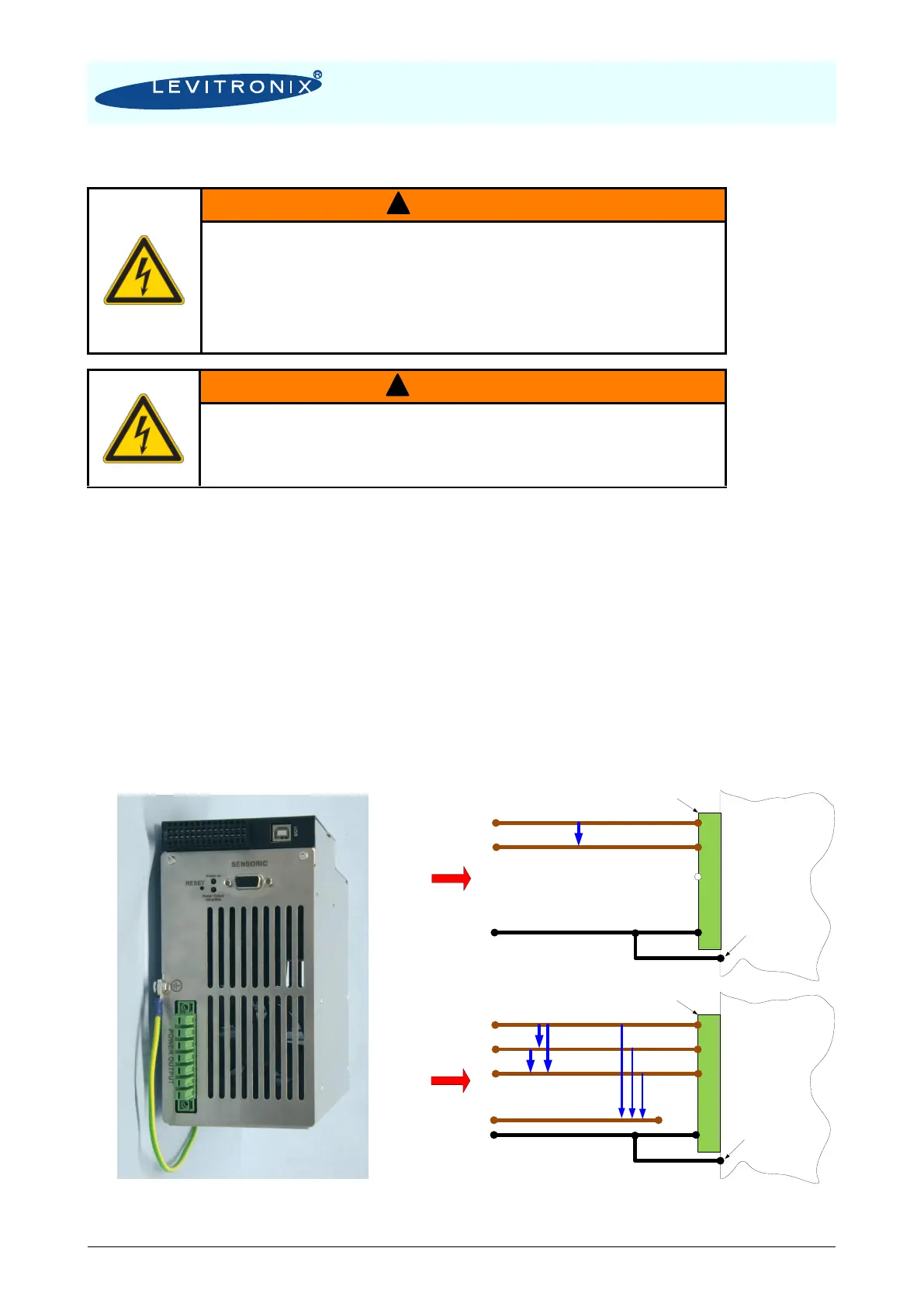

Figure 28: Protective earth and AC power input connection of LPC-2000 controller
Controller
LPC-2000
AC Mains
1-Phase
PE
L3
L2
L1
U
1-Phase
N
L
PE
U
1-Phase
= 200 – 240 Vrms ± 10%
Protective Earth
Screw on Housing
"POWER INPUT"
Connector
Controller
LPC-2000
AC Mains
3-Phase
PE
L3
L2
L1
U
Delta
U
Star
N
L3
L2
L1
PE
U
Delta
= 200 – 240 Vrms ± 10%
U
Star
= 115 – 139 Vrms ± 10%
Protective Earth
Screw on Housing
"POWER INPUT"
Connector
