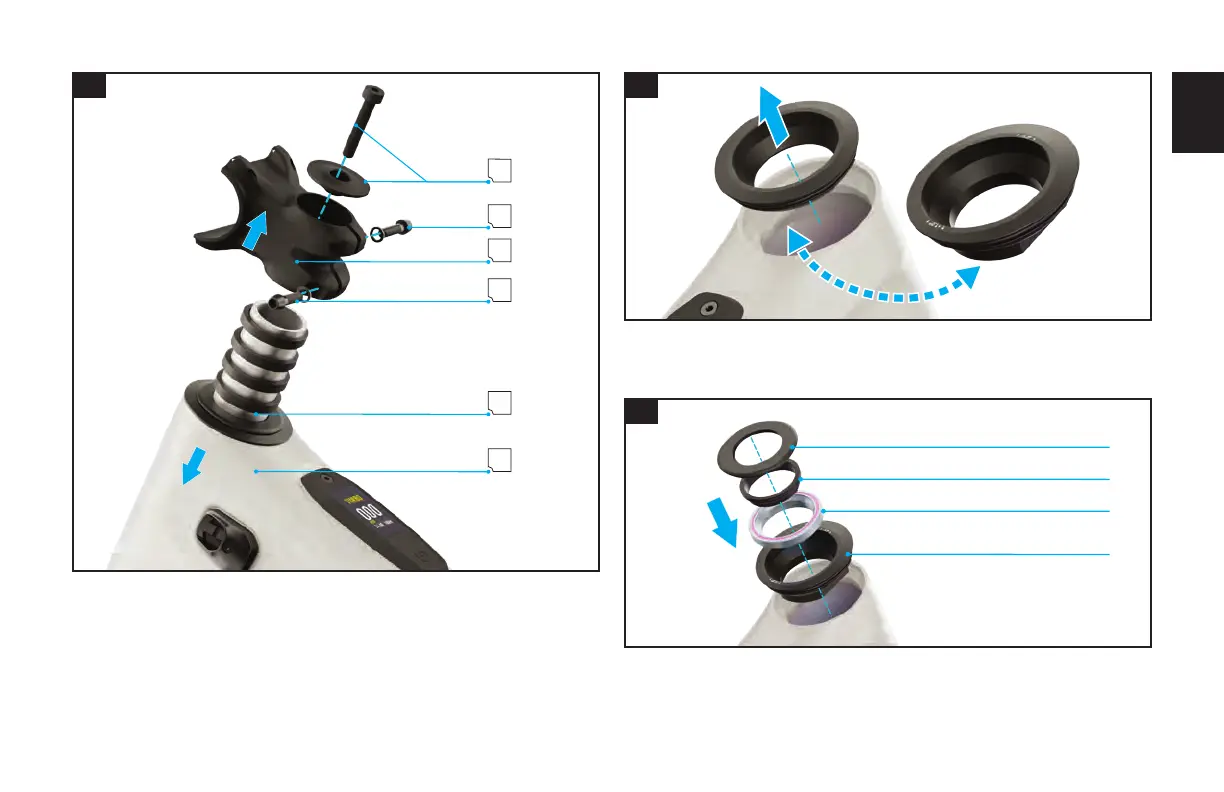

12.3
FORK
Fig. 12.3
 Loosen the stem bolts that attach it to the fork steerer (A).
 Loosen and remove the top cap bolt (B).
 Remove the stem (C) from the fork steerer tube (D) and remove the fork from the frame (E).
 Choose the headset cup and position (Fig 12.2) for the rider’s desired geo.
12.4
Fig. 12.4
 Remove the zero offset cup from the head tube and replace it with the +/- 1-degree headset
cup.
12.5
HEADSET COVER
COMPRESSION RING
UPPER BEARING
ADJUSTABLE HEADSET CUP
Fig. 12.5
Install the headset parts, bearings, and cups into the frame. No tools are required.

Levo COMP ALLOY Specifications

General

Battery	Levo 700Wh
Fork	RockShox 35 Gold RL, 150mm
Drivetrain	SRAM
Tires	Butcher, 29x2.6"
Display	TCU
Charger	Specialized 4A
Shifters	SRAM SX Eagle, 12-speed
Rear Derailleur	SRAM SX Eagle, 12-speed
Cassette	SRAM PG-1210, 11-50t
Chain	SRAM SX Eagle, 12-speed
Chainrings	32t
Handlebars	Specialized Trail, 780mm
Stem	Specialized Trail, 50mm
Seatpost	Specialized, 30.9mm
Rims	Specialized 29, 30mm inner width
Front Hub	Specialized, sealed cartridge bearings
Rear Hub	Specialized, sealed cartridge bearings
Front Tire	Butcher, 29x2.6"
Rotors	200mm
Hubs	Specialized, sealed cartridge bearings
Bottom Bracket	SRAM DUB
Grips	Specialized Sip Grip
Headset	1-1/8" upper, 1.5" lower
Rear Tire	29x2.6"
