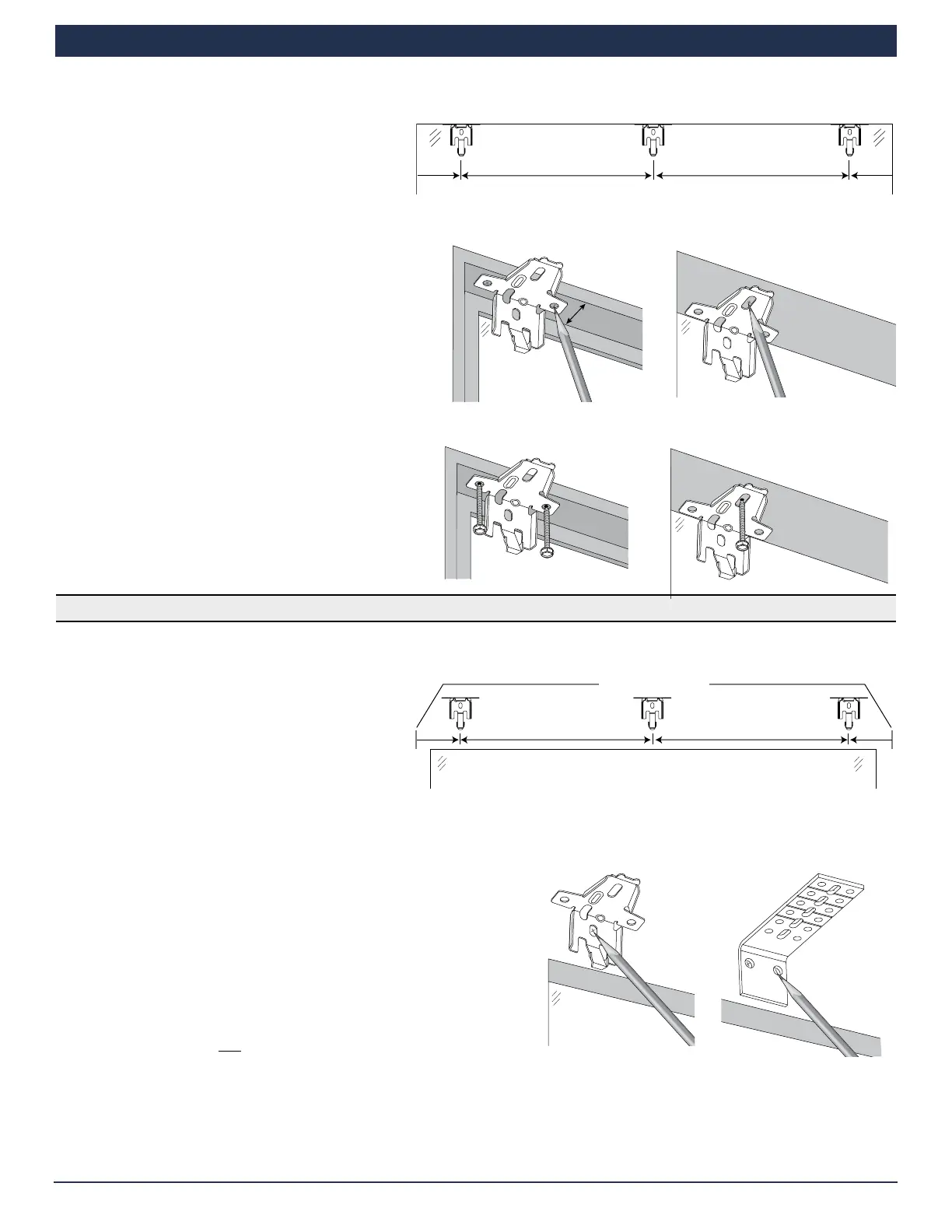

Mount the Installation Brackets — Inside Mount
■
Measure 2" from each jamb for bracket location.
➤
If more than two installation brackets came
with your order, space additional bracket(s)
evenly between the two end brackets and mark
their location. Mount into wood whenever
possible.
■
Center the brackets on yourmarks, then mark the
screw holes.
➤
The minimum casement depth for mounting the
installation brackets is
1
⁄ 2 ". Mark both of the winged
screwholes with the shallow mounting depths.
➤
The minimum casement depth for a fully recessed
mount is 2
1
⁄ 4 " for
3
⁄ 8 " and
3
⁄ 4 "cell sizes and 3" for
the 1
1
⁄ 4 " cell size. Mark the center screw hole when
depth permits.
IMPORTANT: The front edges of the brackets must be
level and aligned to each other.
■
Drill the screw holes using a
3
⁄ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into
drywall.
■
Use a level to check that the mounting surface is level.
Shim the brackets if necessary.
■
Attach the installation brackets using the screws
provided.
Proceed to "Install the Shade" on page 6.
Mount the Installation Brackets — Outside Mount
■
Center the headrail over the window opening at
the desired height. Use a pencil to lightly mark
each end of the headrail on the mounting surface.
➤
Alternatively, measure the width of the
headrail and use that width to mark the
headrail end points over the window opening.
■
Mark 2" from each end of the headrail.
➤
If more than two installation brackets came with your order, space additional bracket(s) evenly between the two end
brackets and mark theirlocation. Mount into wood whenever possible.
■
Center the installation brackets on your marks and mark where to drill
the screw holes.
➤
A minimum flat vertical surface of 1
1
⁄ 4 " for installation brackets or
extension brackets is required.
➤
The top of the installation brackets or extension brackets should be
at the desired height. The brackets should be level and aligned.
➤
When using extension brackets, mark two screw holes per bracket.
CAUTION: The rear of the brackets must be flush against a flat
mounting surface. Do not mount brackets on curved molding.
■
Drill the screw holes using a
3
⁄ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
2" Space Evenly
Jamb Jamb
Space Evenly
2"
Minimum
1
∕ 2 "
Use Center Hole
When Depth Permits
Headrail End Marks
Window Opening
2" Space Evenly Space Evenly
2"
