3.7 Model V10 & V12 under deck fitting

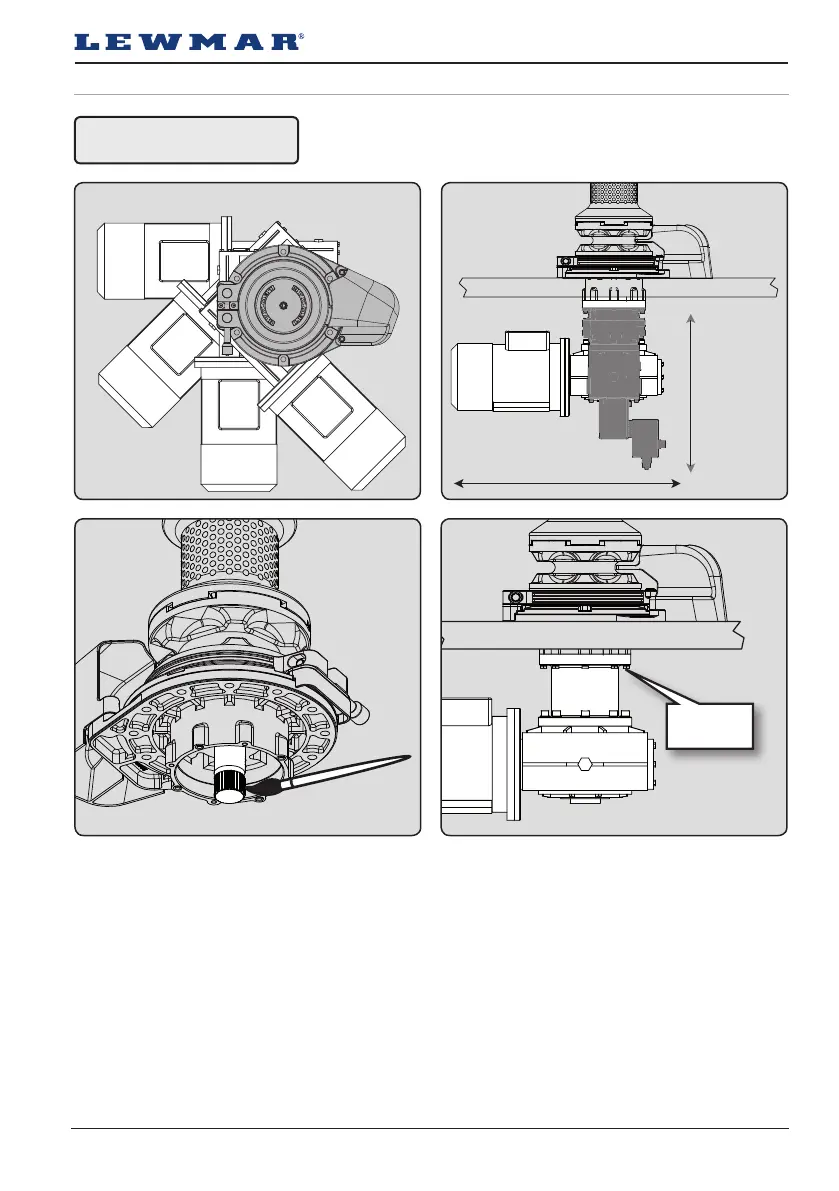

1. The motor/gearbox is bolted directly to the base via a down tube. There are various positions available.
NOTE: Motor/gearbox must not obstruct the chain fall hole.
2. Minimum depth under deck required for electric motor/gearbox and hydraulic motor unit, see §8.
3. Lightly coat the splined sha of the windlass with grease. Selecting the most suitable position, slide the mo-
tor/gearbox in to place.
4. Assemble the bolts and washers and secure with Loctite® threadlock to 43Nm.
NOTE: Additional support is required for the electric motor/gearbox using the mounting support under the motor.
 WARNING! Extremely heavy,
use mechanical lift aid.
