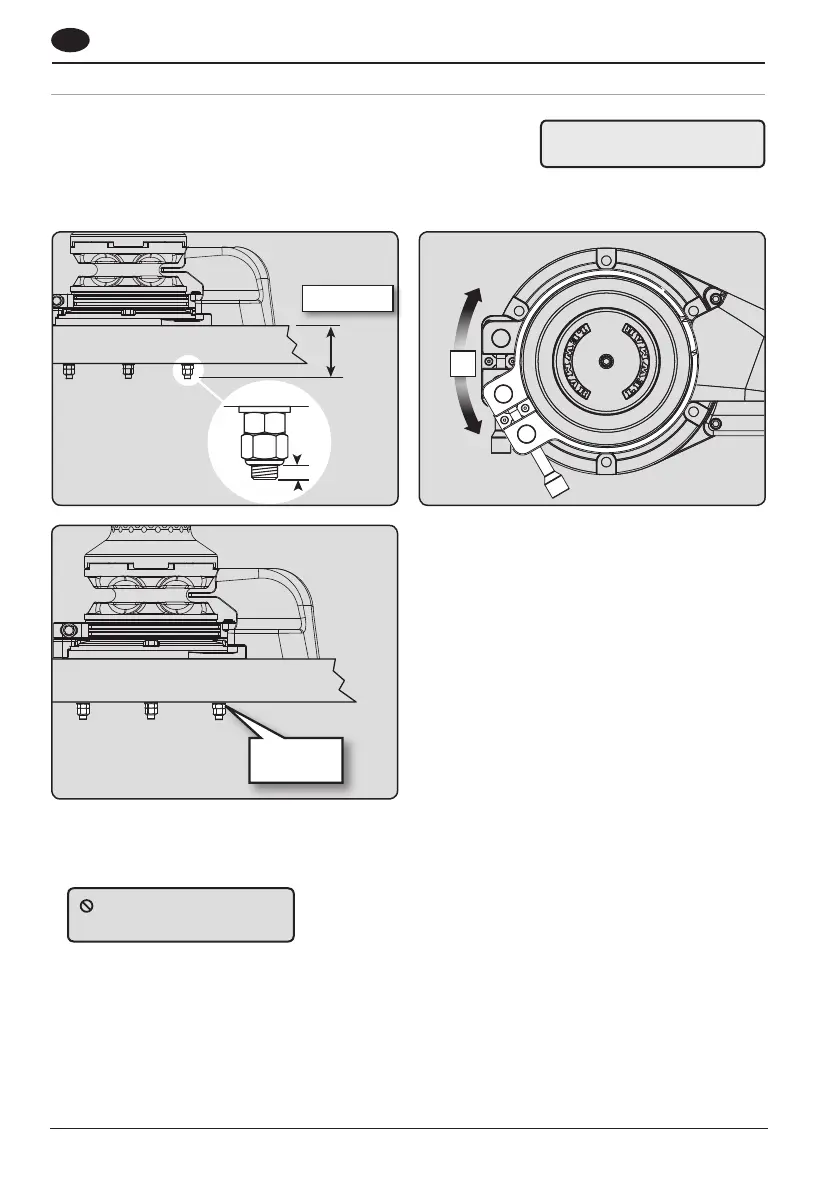

3.6 Model V10/12 fitting windlass
• NOTE: Lewmar recommends V10/12 windlasses are specified and
installed by competent marine engineers.
• Using template drill 6 x 17mm diameter bolt holes.
• Cut 260mm and 120mm diameter holes.
• With a sandwich deck construction it is important to seal the exposed surfaces.
1. Measure deck depth plus the washer and 2 nuts then add 5mm. Select M16 bolts of suitable length
(not supplied by Lewmar). Maximum deck thickness 200mm.
• Apply a bead of suitable sealant/bedding compound and mount the windlass through the deck.
2. Select the operating position for the band brake and insert bolts.
3. Assemble the washer and M16 nut first and secure with Loctite® threadlock to 183 Nm and then secure with
M16 Nyloc nut.
NOTE: If using silicone or other rubbery type sealant, it is advisable to allow curing of the sealant before final
tightening of the mounting nuts.
WARNING! Extremely heavy,
use mechanical lift aid.
DO NOT use a permanent
adhesive/sealant, eg. 5200.
