Lewmar V8/V9/V10/V12 Vertical Windlass ref 66300094 Iss.6 | 9
43 Nm
74 Nm
3.5-1
3.5-4
3.5-3
3.5-2

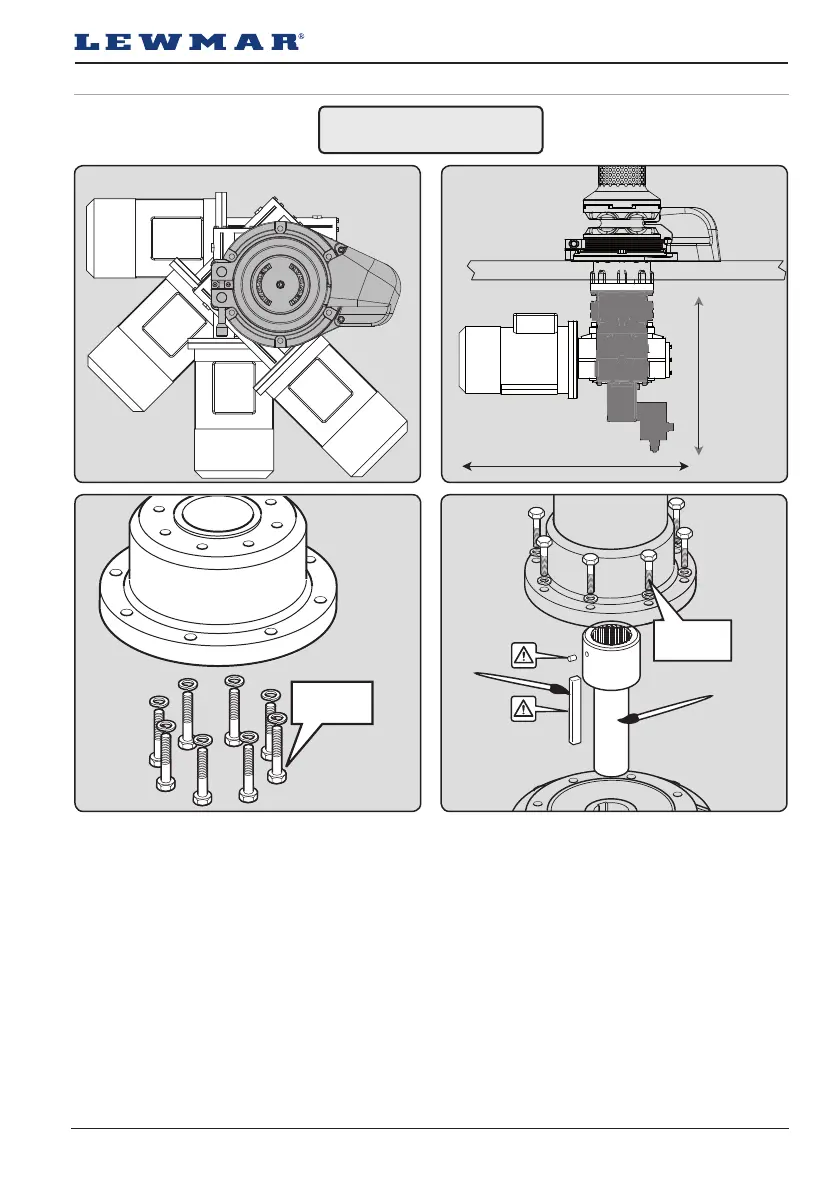

3.5 Model V9 under deck fitting
1. The motor/gearbox is bolted directly to the base via an adaptor. There are various positions available.
NOTE: Motor/gearbox must not obstruct the chain fall hole.
2. Minimum depth under deck required for electric motor/gearbox and hydraulic motor unit, see §8.
3. Fit the adaptor to the base of the windlass with 8 - M10x55 bolts and M10 spring washers secure to 43Nm.
4. Lightly coat the splined drive sha of the windlass with grease.
• Electric/hydraulic motor/gearbox
Gently slide the splined end of the motor/gearbox coupling onto the spline of the windlass drive sha and
secure with grub screw. Ensure drive key is on the coupling. Selecting the most suitable position, slide the
motor/gearbox in to place until its face meets with the adaptor plate. Secure with 8 - M12x50 bolts and M12
spring washers to 74Nm.
• Hydraulic drive with brake
Proceed as above except this unit does not require a motor/gearbox coupling.
NOTE: Additional support is required for the electric motor/gearbox using the mounting support under the motor.
WARNING! Extremely heavy,
use mechanical lift aid.
