Lewmar V8 - V8 DECK UNIT DIMENSIONS

Lewmar V8/V9/V10/V12 Vertical Windlass ref 66300094 Iss.6 | 29
B
C
A
E
D
F
G
B
A

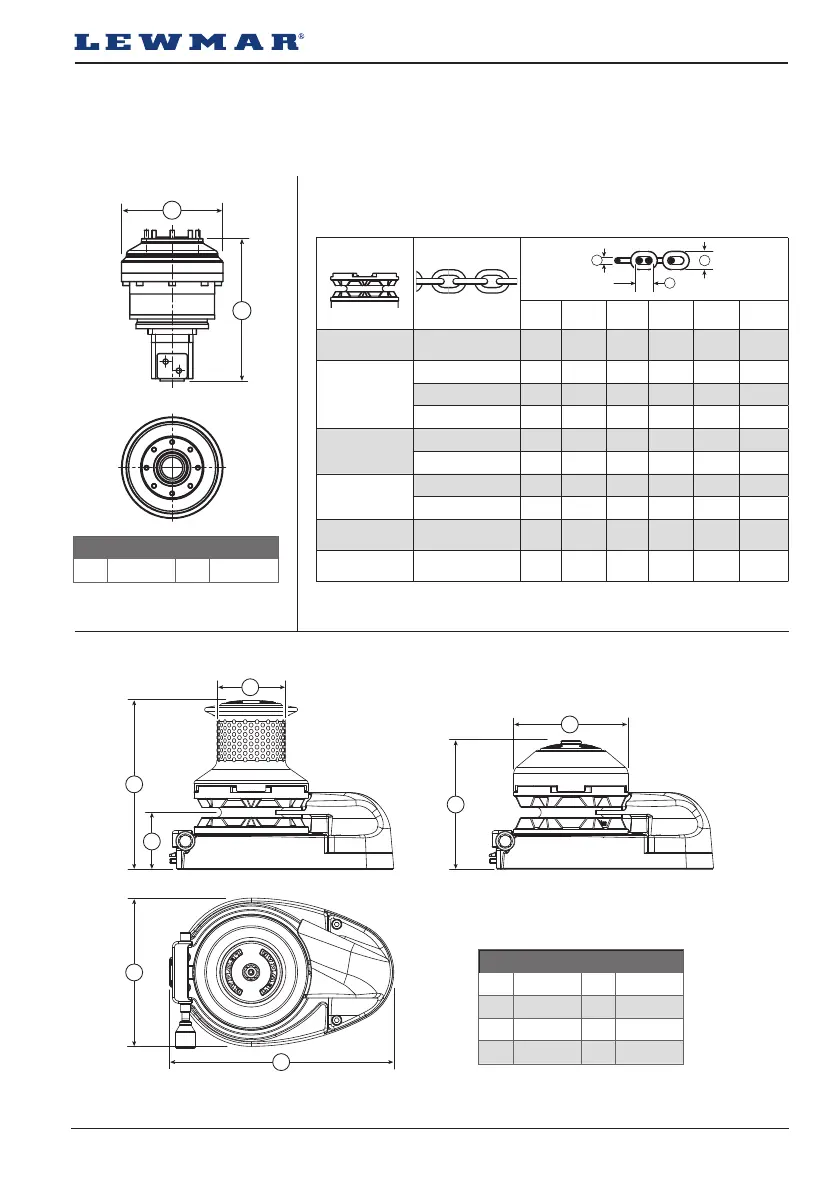

V8 DECK UNIT DIMENSIONS
A 296 mm E Ø200 mm
B 100 mm F 260 mm
C Ø120 mm G 393 mm
D 225 mm
HIPOWER HYDRAULIC  52 KG
A Ø245 mm B 344 mm
P
W
D
D
(mm)
D
(inch)
P
(mm)
P
(inch)
W
(mm)
W
(inch)
68000900
11mm Gypsy
11 mm DIN 766 11 0.433 31 1.22 40 1.575
68000877
12-13mm Gypsy
12 mm Short Link 12 0.472 36 1.417 40.5 1.594
7/16” ISO G4 11.8 0.464 35.5 1.4 40.1 1.578
13 mm DIN 766 13 0.512 36 1.417 47 1.850
68000878
14mm Gypsy
14mm Short Link 14 0.551 42 1.654 49 1.929
14mm DIN 766 14 0.551 41 1.614 50 0.969
68000879
16mm Gypsy
16mm Short Link 16 0.630 48 1.890 56 2.205
16mm DIN 766 16 0.630 45 1.772 58 2.283
68000880
½” Gypsy
½” ACCO G4 13.2 0.519 40.4 1.590 45.7 1.798
68000881
14mm Studlink
14mm Studlink 14 0.550 56 2.205 50.4 1.984
