Lewmar V8 - 8.2 Model V9 dimensions

30

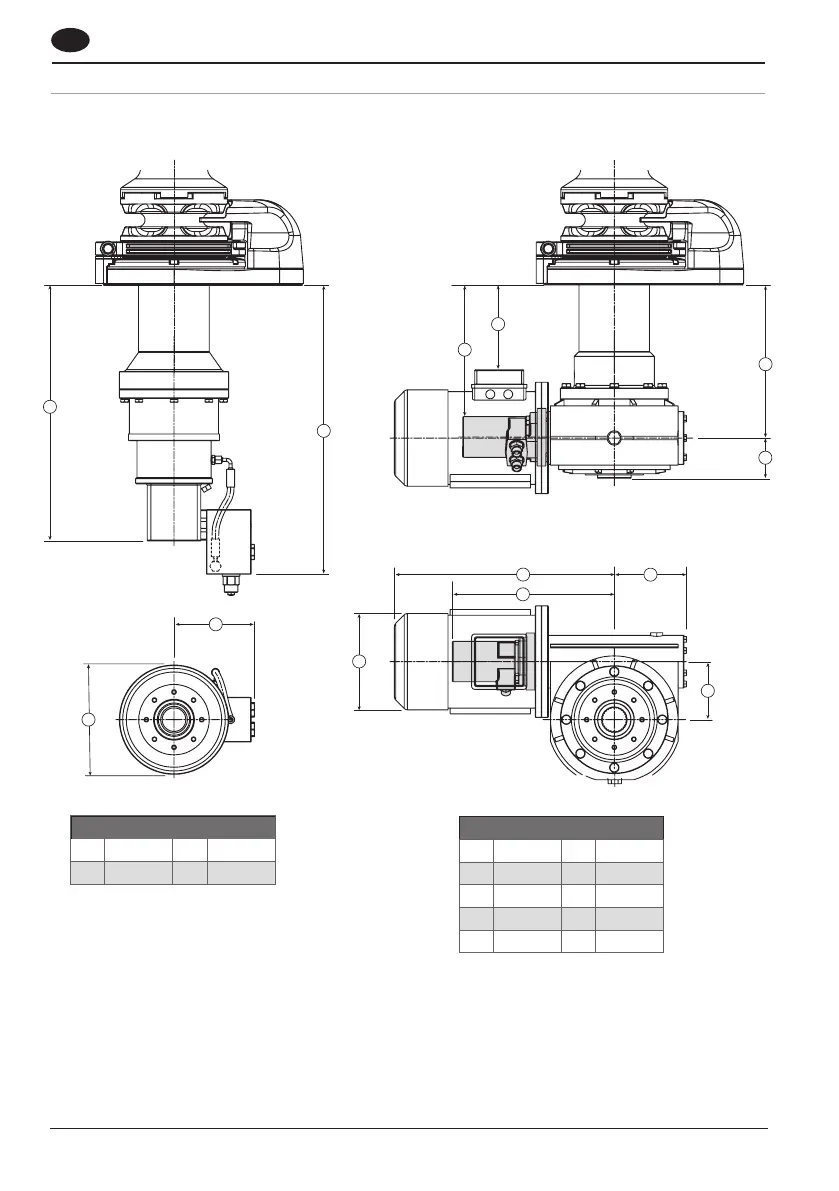

V9 HYDRAULIC
A 574mm C Ø245 mm
B 649 mm D 173 mm
V9 4KW AC/HYDRAULIC
A 190 mm F 162 mm
B 343 mm G Ø250 mm
C 92 mm H 130 mm
D 297 mm I 338 mm
E 493 mm
B
A
D
E
I
C
F
G
H
B
A
C
D
GB
8.2 Model V9 dimensions
