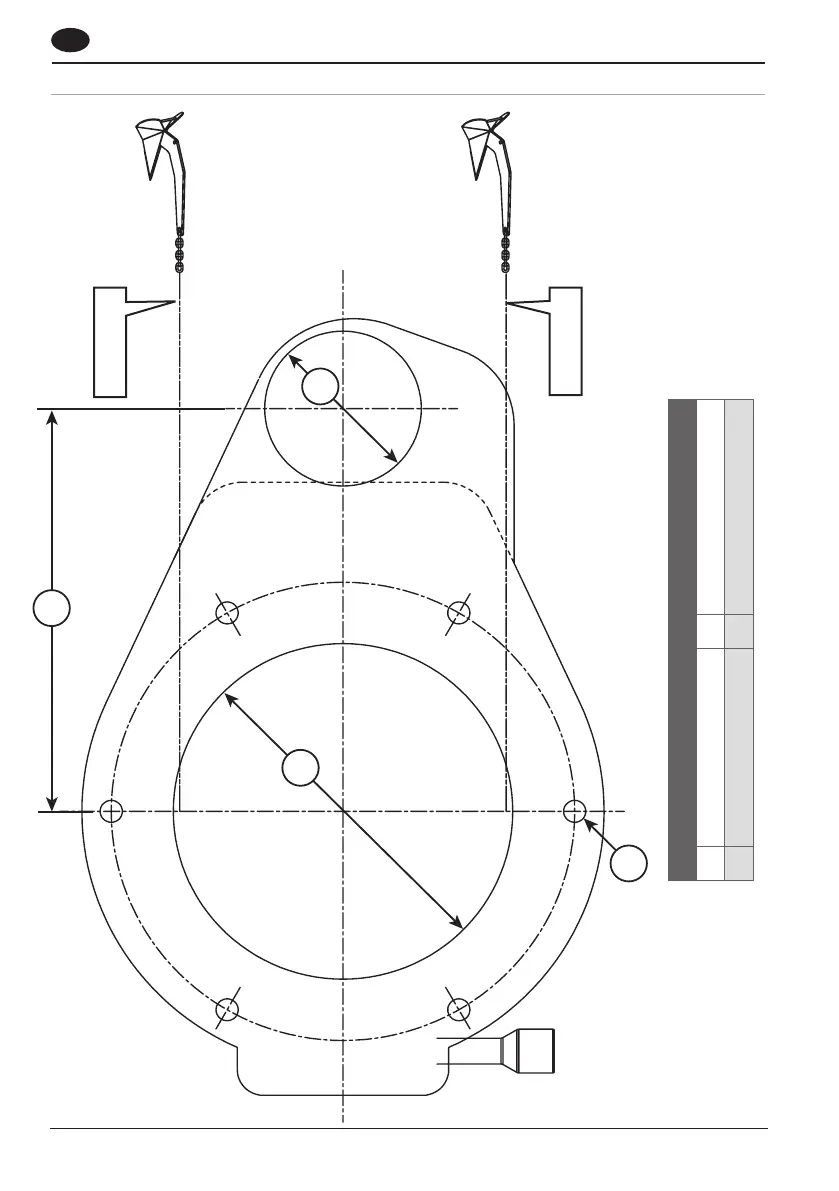

MODEL V10 / V12
A 312 mm (12¼”) C Ø120 mm (4¾”)
B Ø260 mm (10¼”) D 6 x Ø17 mm (11/16”) PCD 355 mm (14”)
R/H Chain Line
L/H Chain Line
GB
8.6 Model V10/12 deck template guide
