Lewmar V8 User Manual

Lewmar V8/V9/V10/V12 Vertical Windlass ref 66300094 Iss.6 | 35
MODEL V9
A 207 mm (8 ⅛”) D
6 x Ø15 mm (⅝”) PCD 240 mm (9 ⁷/₁₆”)
B Ø178 mm (7”) E Ø10 mm (⅜”)
C Ø140 mm (5 ½”) F 108 mm (4 ¼”)
A
F
B
C
D
E
R/H Chain Line
L/H Chain Line

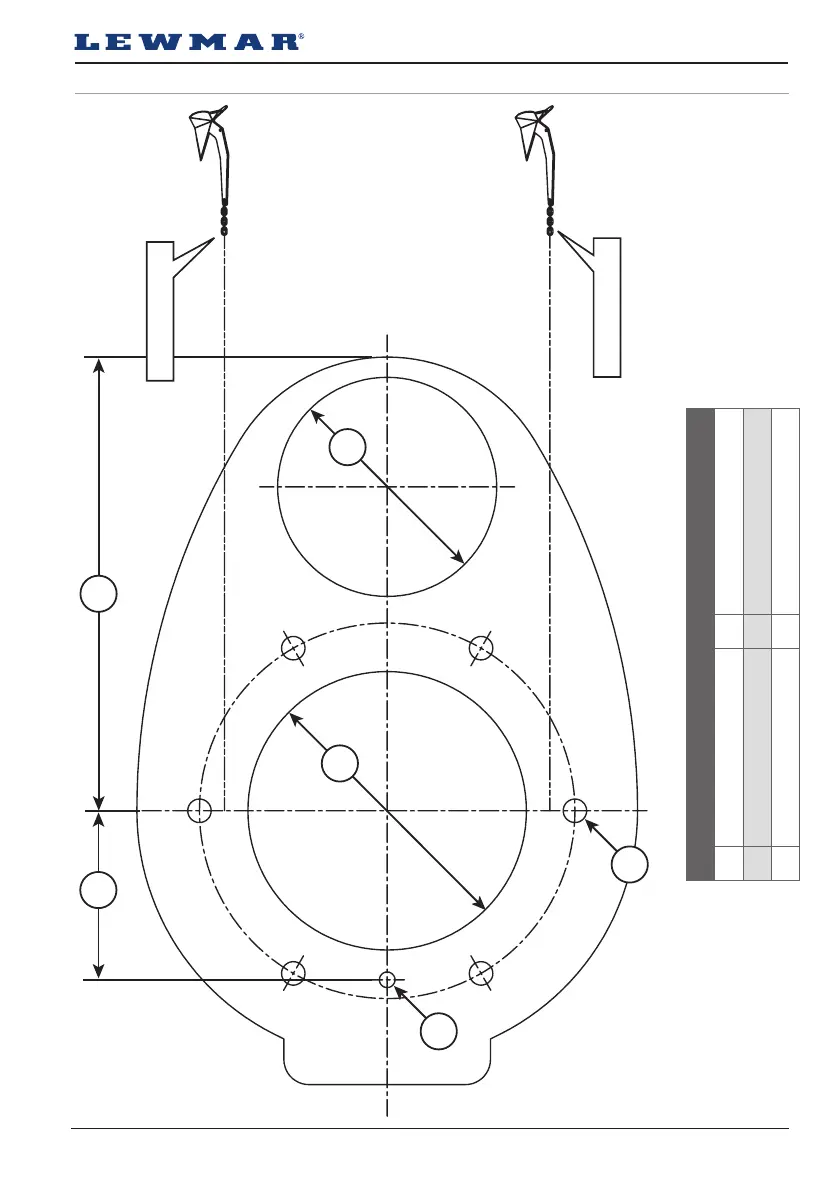

8.5 Model V9 deck template guide
