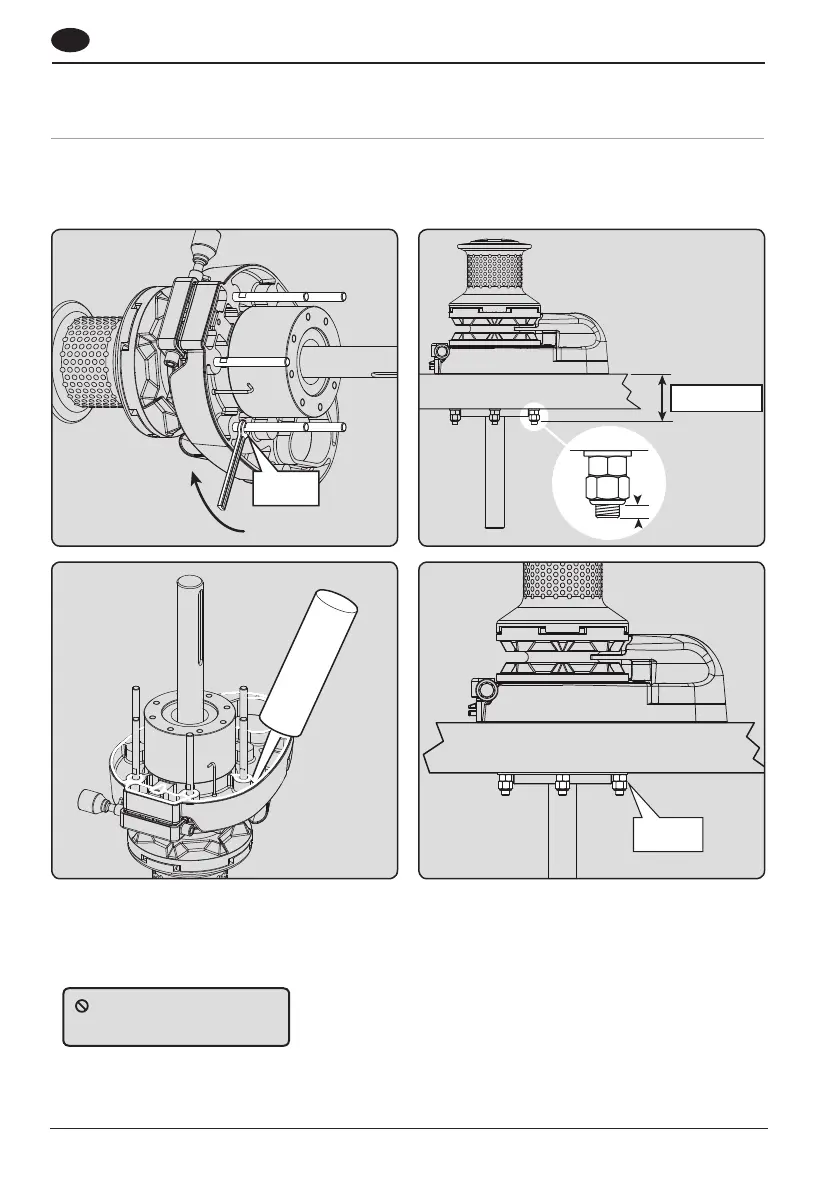

3.2 Model V8 fitting windlass
• Drill 13mm diameter stud holes.
• Drill 150mm and 115mm diameter holes.
• With a sandwich deck construction it is important to seal the exposed surfaces.
1. Fit studs to windlass base and tighten to 74Nm.
2. Measure deck depth plus clamp plate and the 2 nuts and add 5mm. Trim studs to length, if required.
Maximum deck thickness 76mm (3”)
3. Apply a bead of suitable sealant/bedding compound and mount the windlass through the deck.
4. Fit windlass to deck and tighten locknuts to 74Nm.
NOTE: If using silicone or other rubbery type sealant, it is advisable to allow curing of the sealant before final
tightening of the mounting nuts.
DO NOT use a permanent
adhesive/sealant, eg. 5200.
