Lewmar V8 User Manual

Lewmar V8/V9/V10/V12 Vertical Windlass ref 66300094 Iss.6 | 7
45°
3.3-1
3.3-43.3-3
3.3-2
43 Nm

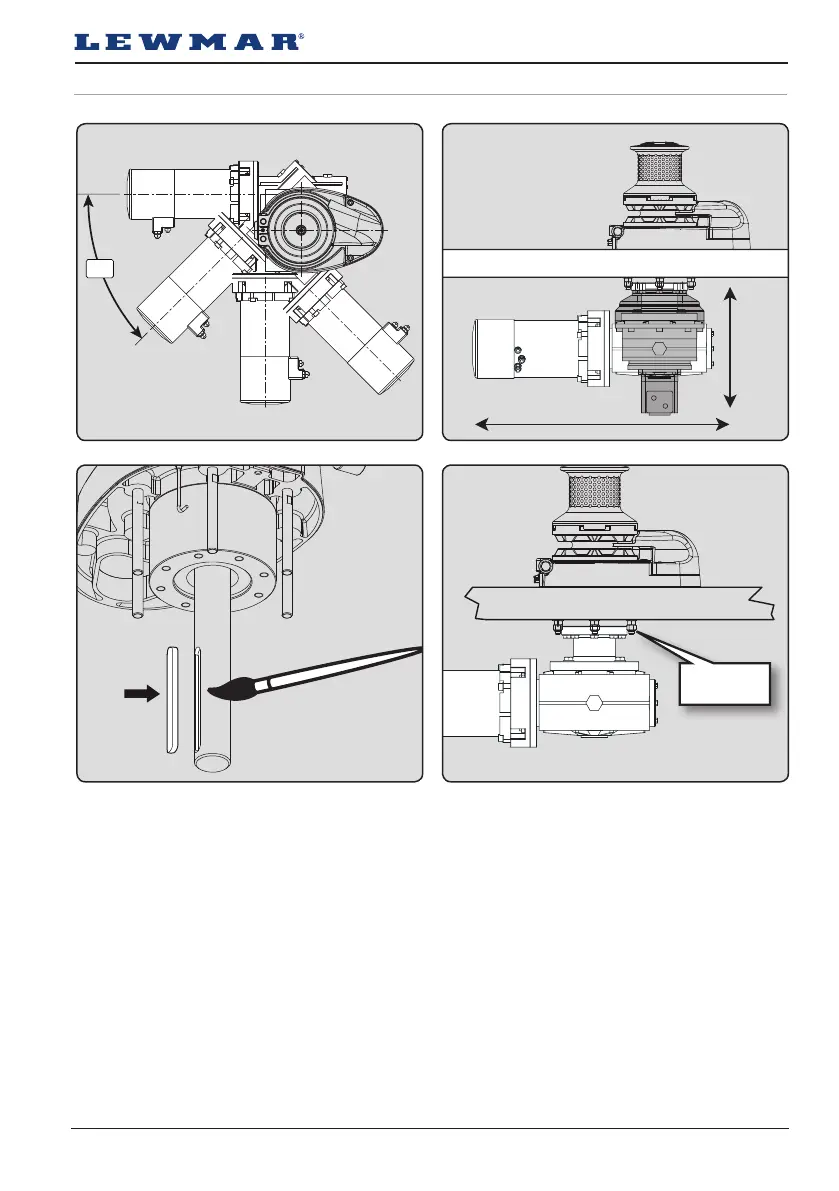

3.3 Model V8 under deck fitting
1. There are 4 positions available for electric motor/gearbox.
2. Minimum depth under deck required for electric motor/gearbox and hydraulic motor unit, see §8
3. Lightly coat the sha of the windlass with grease. Ensure the drive key is in place and, selecting the most
suitable of the 4 positions, slide the motor/gearbox into position.
4. Assemble the bolts and washers and secure with Loctite® threadlock to 43Nm.
