Lewmar Venta - Wiring Diagram

10
lippert.com 432-LIPPERT (432-547-7378) Rev: 10.20.23
Venta
TM
Pontoon
Anchor Winch
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0007416

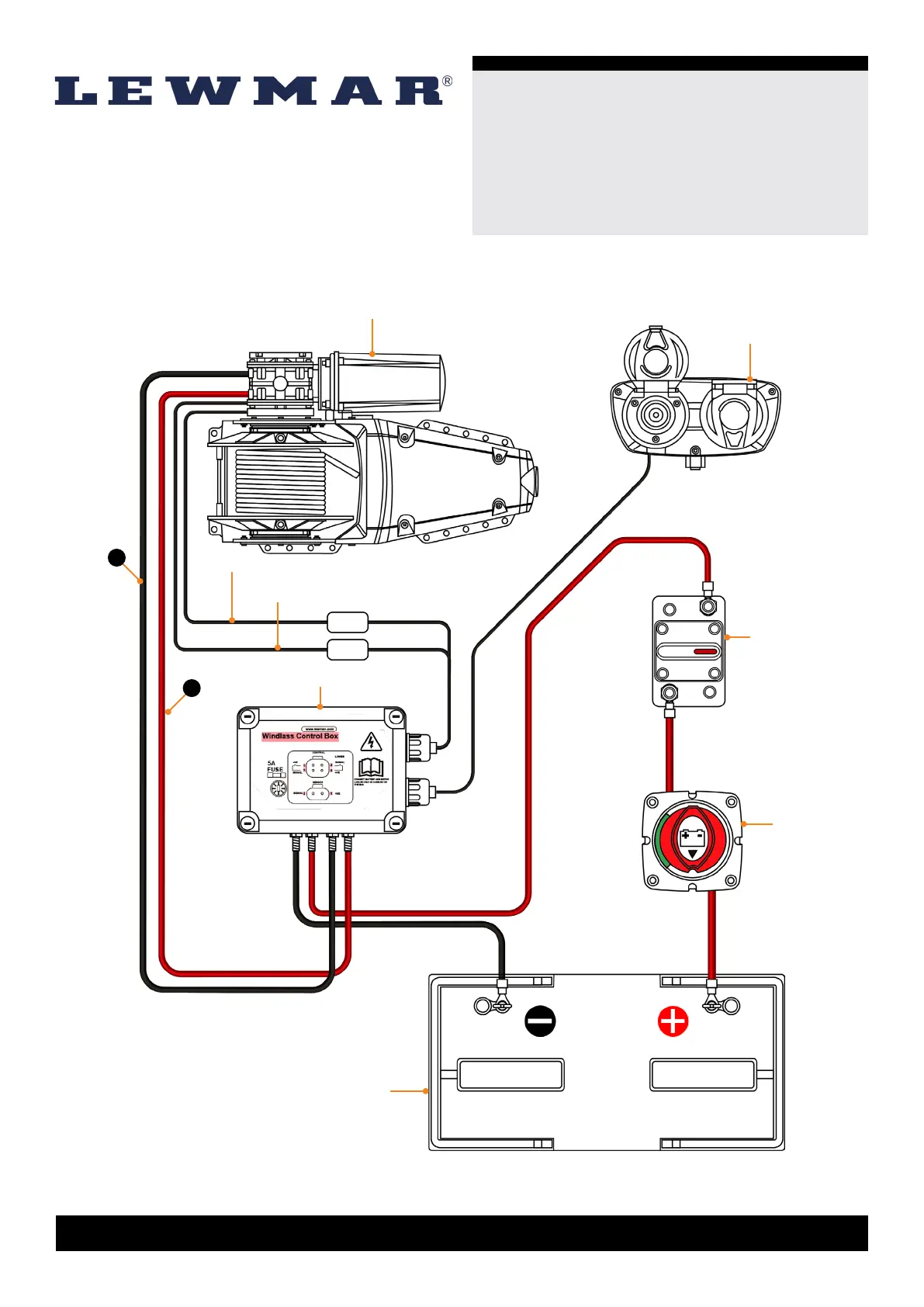

Wiring Diagram
Fig.10
A
B
Slack line sensor cable
Winch
Switch
12V DC battery
Control Box
Circuit breaker
Disconnect
isolator
Chain sensor cable
