Lewmar Venta - Switch Mounting Template

15
lippert.com 432-LIPPERT (432-547-7378) Rev: 10.20.23
Venta
TM
Pontoon
Anchor Winch
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0007416

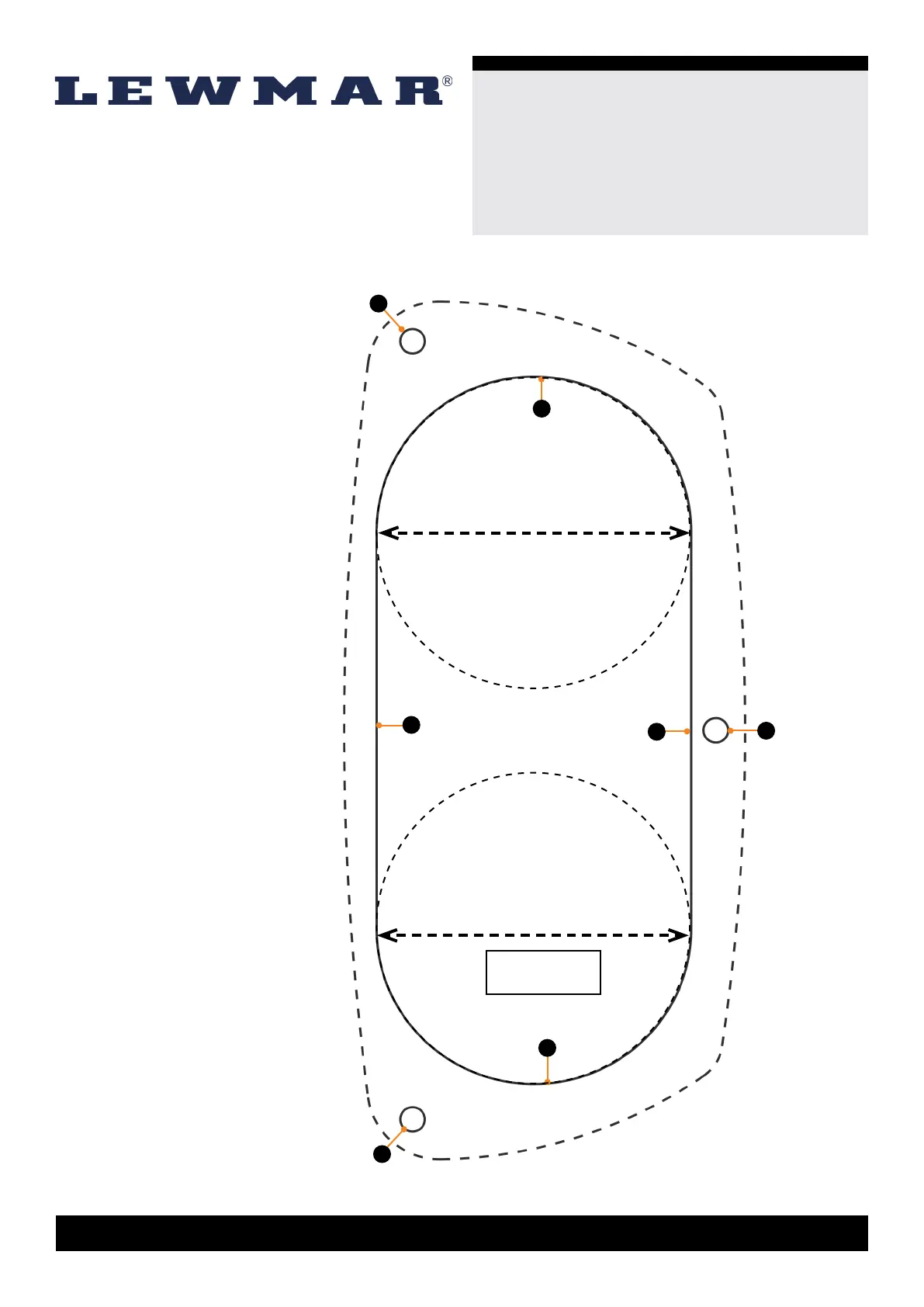

Switch
Mounting
Template
NOTE: Printer settings
may vary. To ensure the
printed template is accurate,
measure the diameter of
the holes when printed. The
diameter should be 70mm
(~2 ¾”). It is recommeded
to also verify the template
against the actual switch
prior to starting installation.
1. Print this page or tear it
out of the manual. Tape it
using painters tape to the
intended mounting location
where the switch will be
installed.
2. Using an electric drill and
5.5mm (⁄”) drill bit, drill
holes at the three marked
locations on the template
(Fig. 13A).
3. Using a 70mm (2 ¾”) drill
or hole saw, cut two holes
where indicated by the
template for either side of
the switch (Fig. 13B).
4. Use a jigsaw to connect
the two 70mm (~2 ¾”) holes
into one hole following
the lines on the template
(Fig. 13C).
TOP
Fig.13
A
A
A
B
B
C
C
Diameter 70mm
(~2 ¾”)
Diameter 70mm
(~2 ¾”)
