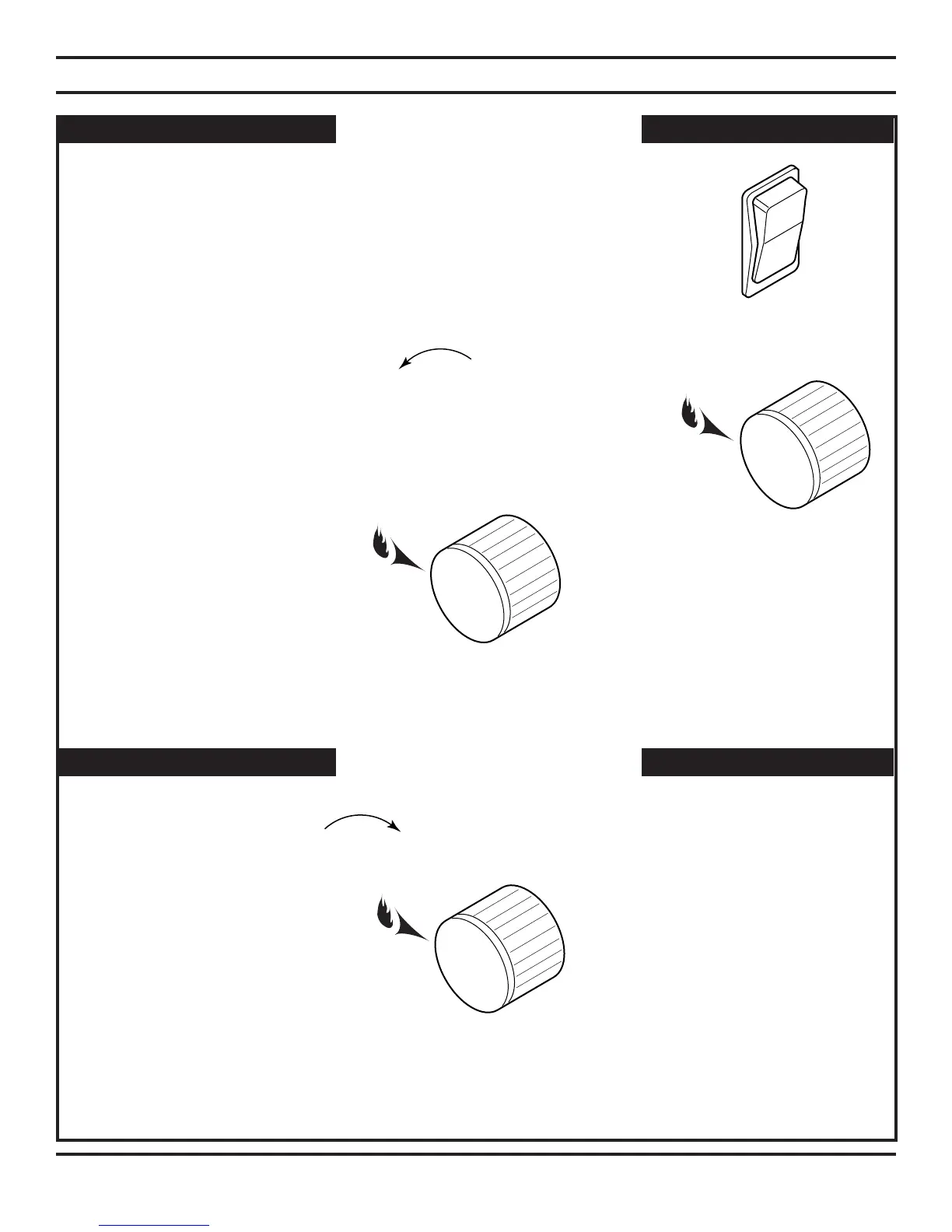

Figure 42 - Off Position
Figure 40 - On Position
Figure 41 - Pilot Position
Figure 39 - Burner Switch
OPERATING INSTRUCTIONS
LIGHTING BURNER
MAIN BURNER SWITCH
The “ON/OFF” switch for the main burner can be found on the back right side
of the stove. This switch allows you to turn on and to turn off the main burner
without using the gas valve knob. Make sure the button is in the “ON” position
to light the main burner. See Figure 39.
LIGHTING THE BURNER
Depress and turn the knob counterclockwise to the “ON” position. See
Figure 40. It will take less than four (4) seconds for the burner to ignite.
PILOT POSITION
Depress and turn knob to pilot position to keep burner off while maintaining the
pilot light. See Figure 41.
Depress and turn knob clockwise to “OFF” position. See Figure 42.
TO TURN OFF GAS
To Next Page
