Repair information 4-83
7014-xxx

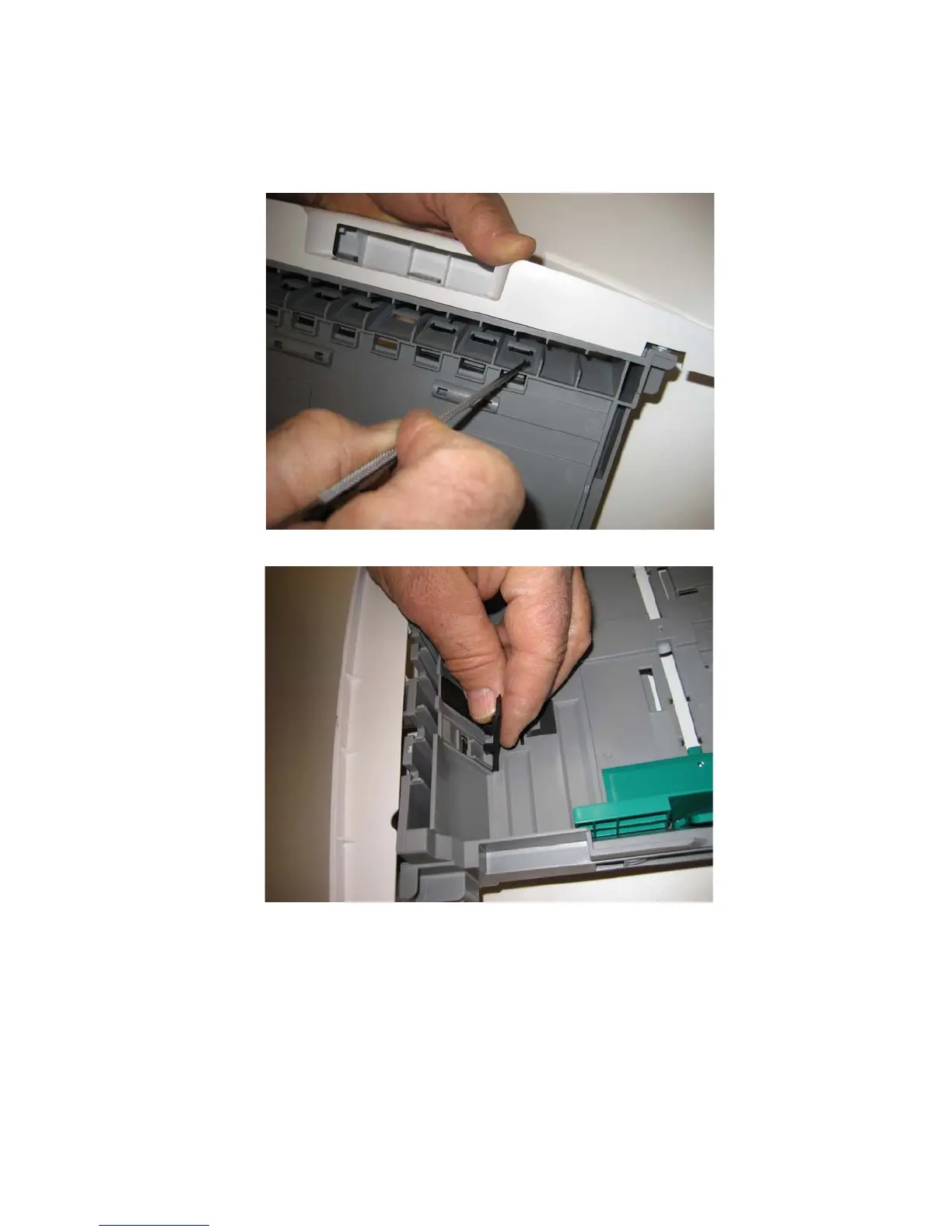

Wear strip (tray 1 and 250-sheet tray 2) removal
1. Hold the tray with the bottom up.
2. Use a spring hook to disconnect the strip from the top of the tray.
3. Remove the strip from inside the tray.
