Lexmark B3340dw - Paper Jam in the Duplex Unit

12 Insert the tray.

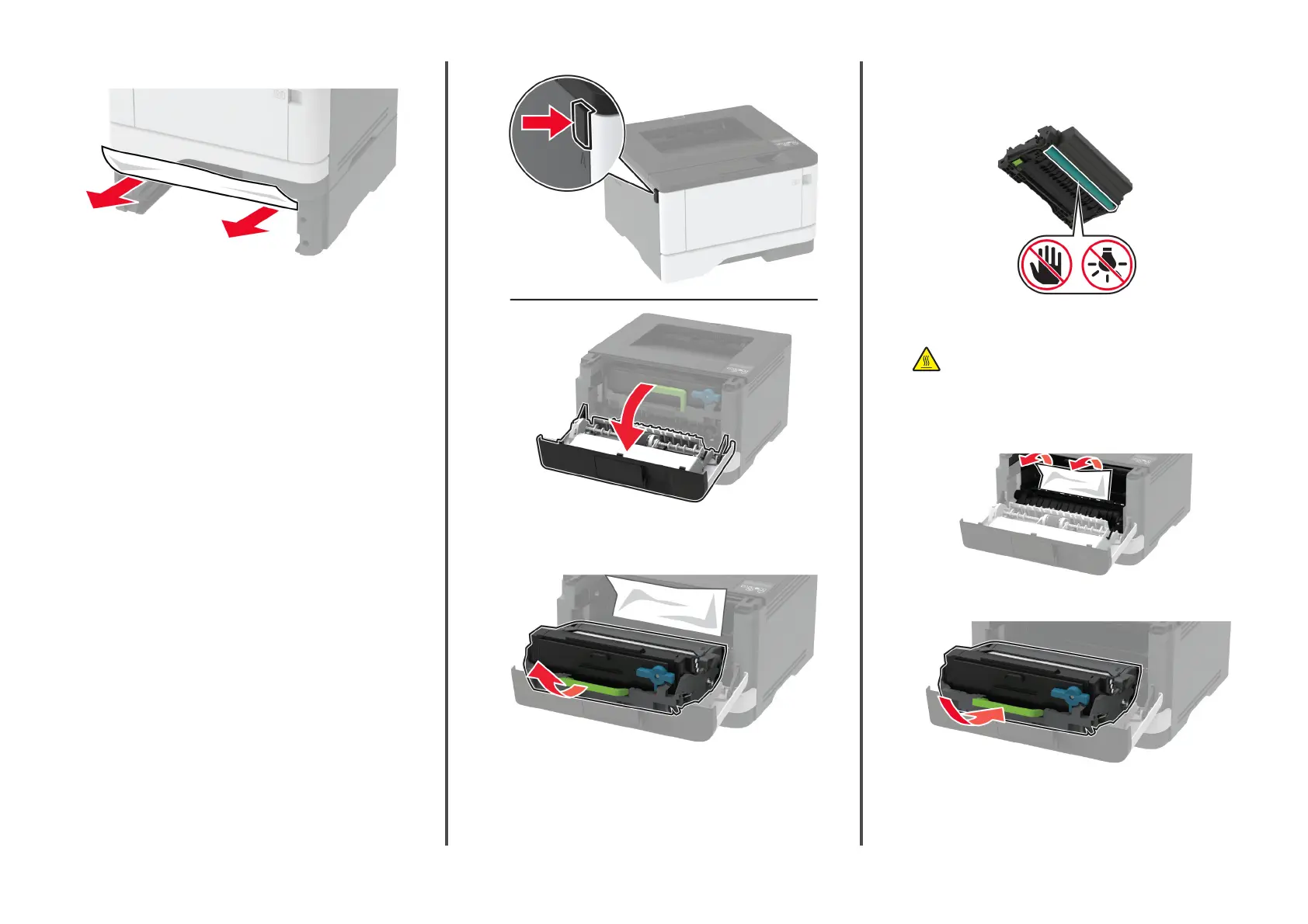

Paper jam in the duplex unit
1 Open the front door.
Warning—Potential Damage: To prevent damage from
electrostatic discharge, touch any exposed metal frame of
the printer before accessing or touching interior areas of the
printer.
2 Remove the imaging unit.
Warning—Potential Damage: Do not expose the imaging
unit to direct light for more than 10 minutes. Extended
exposure to light may cause print quality problems.
Warning—Potential Damage: Do not touch the
photoconductor drum. Doing so may
aect
the quality of
future print jobs.
3 Remove the jammed paper.
CAUTION—HOT SURFACE: The inside of the printer
might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching
it.
Note: Make sure that all paper fragments are removed.
4 Insert the imaging unit.
5 Close the door.
9
