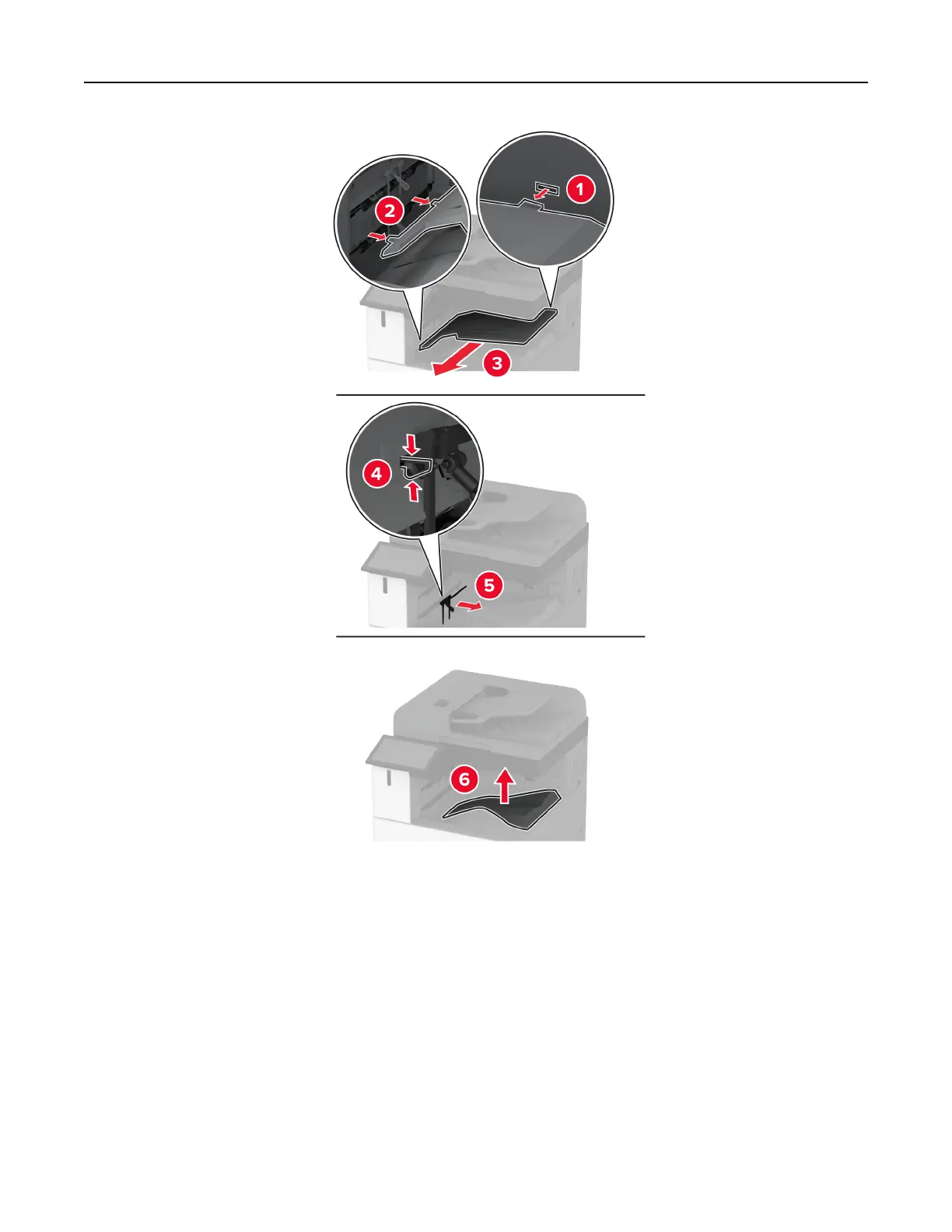

8 Open the front door, and then remove the blue knob.

Note: Do not throw away the blue knob.

Set up, install, and conﬁgure 126
