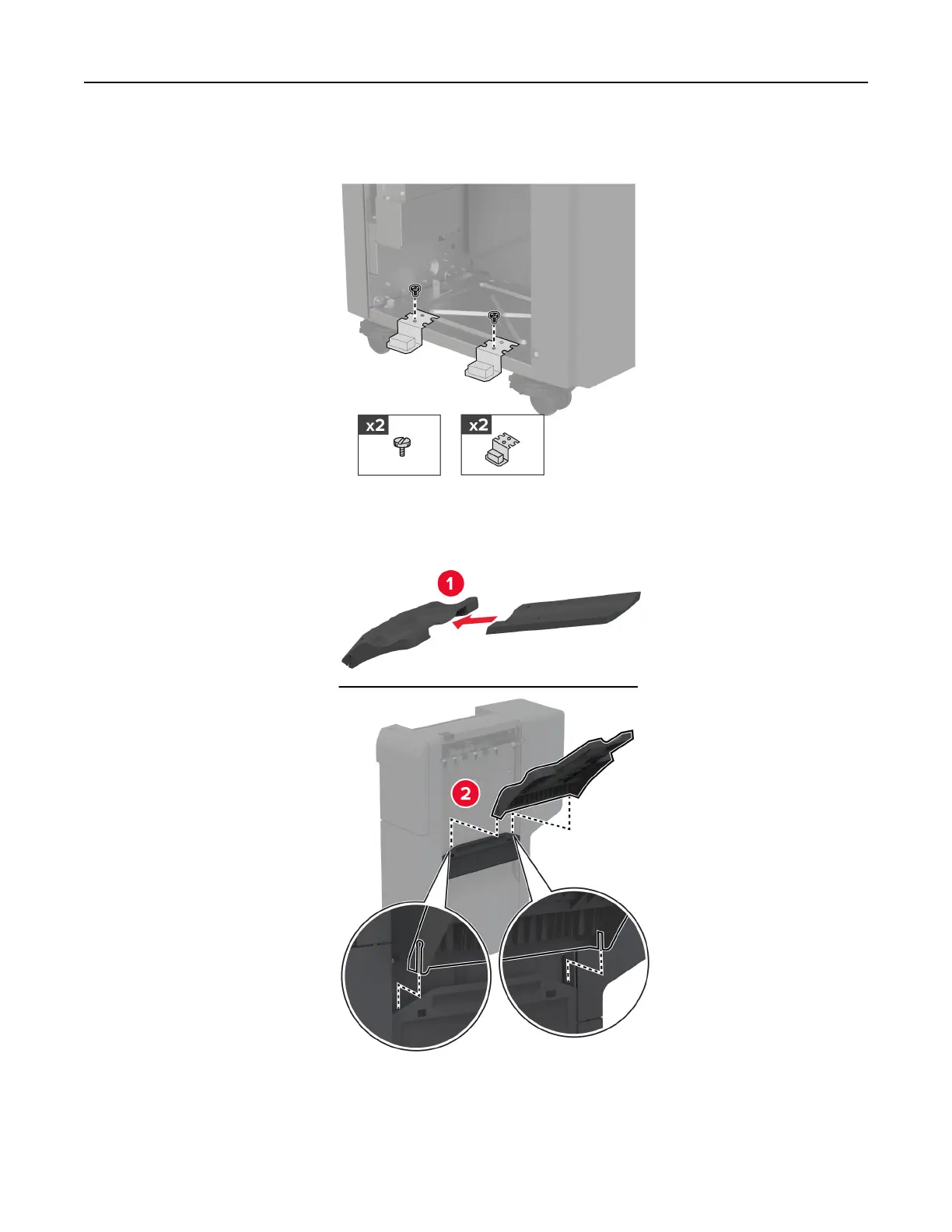

5 Attach the brackets to the ﬁnisher.

6 Insert the bin into the ﬁnisher.

7 Remove the standard bin.

Note: Do not throw away the standard bin.

Set up, install, and conﬁgure 125
