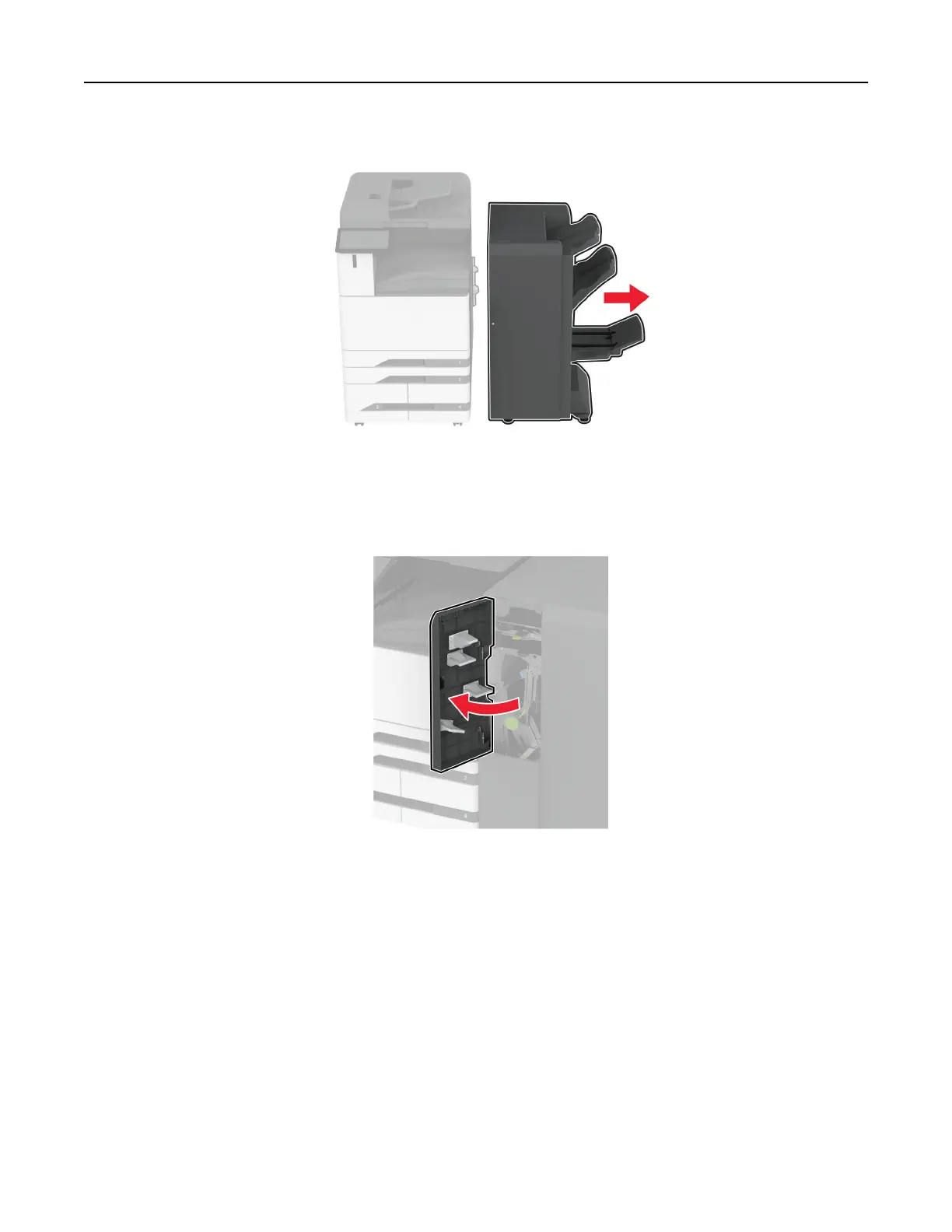

5 Remove the booklet ﬁnisher.

6 Unpack the trifold/Z‑fold ﬁnisher, and then remove all the packing material.

7 Open the ﬁnisher door.

Set up, install, and conﬁgure 151
