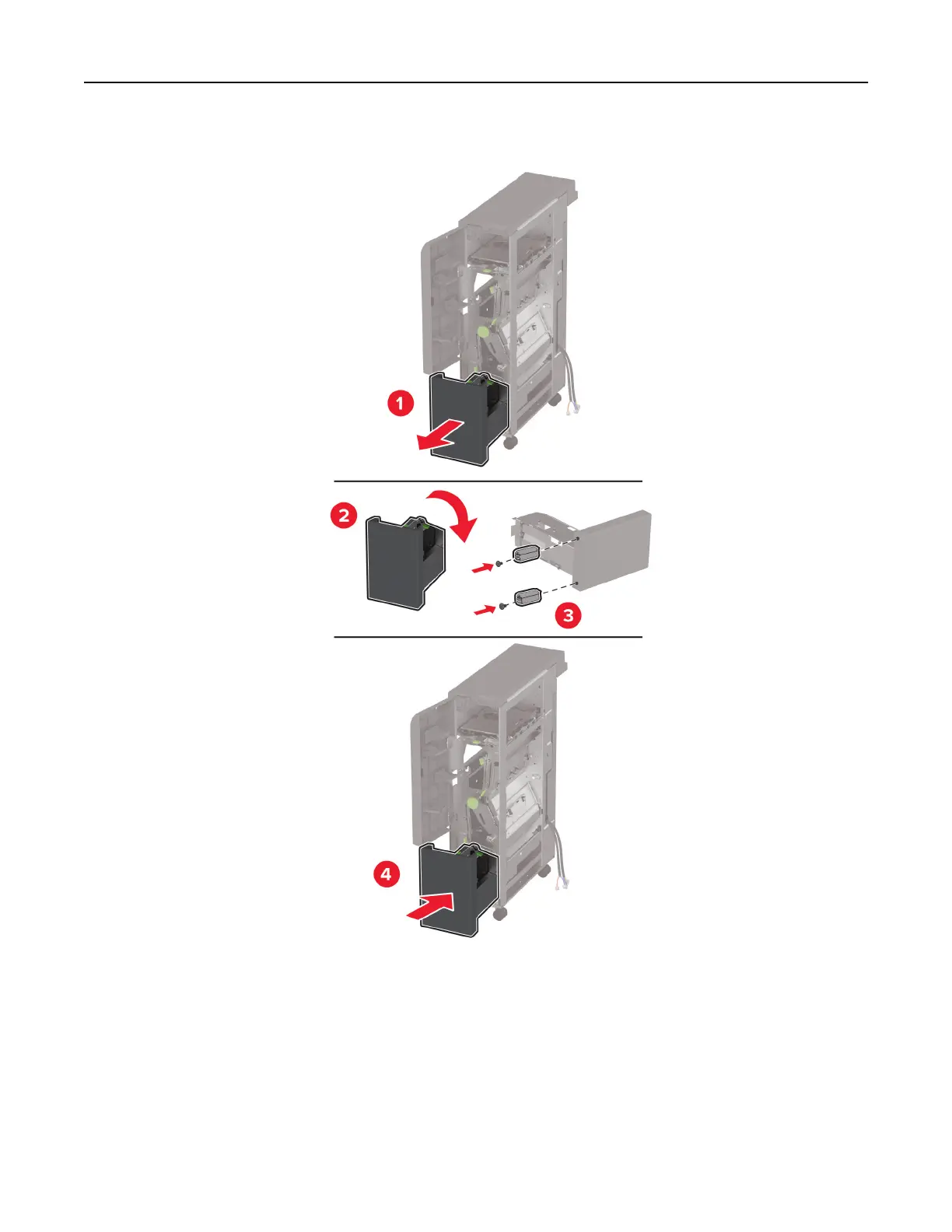

8 Remove the trifold bin, attach the screws to the bin, and then insert the bin.

Set up, install, and conﬁgure 152
