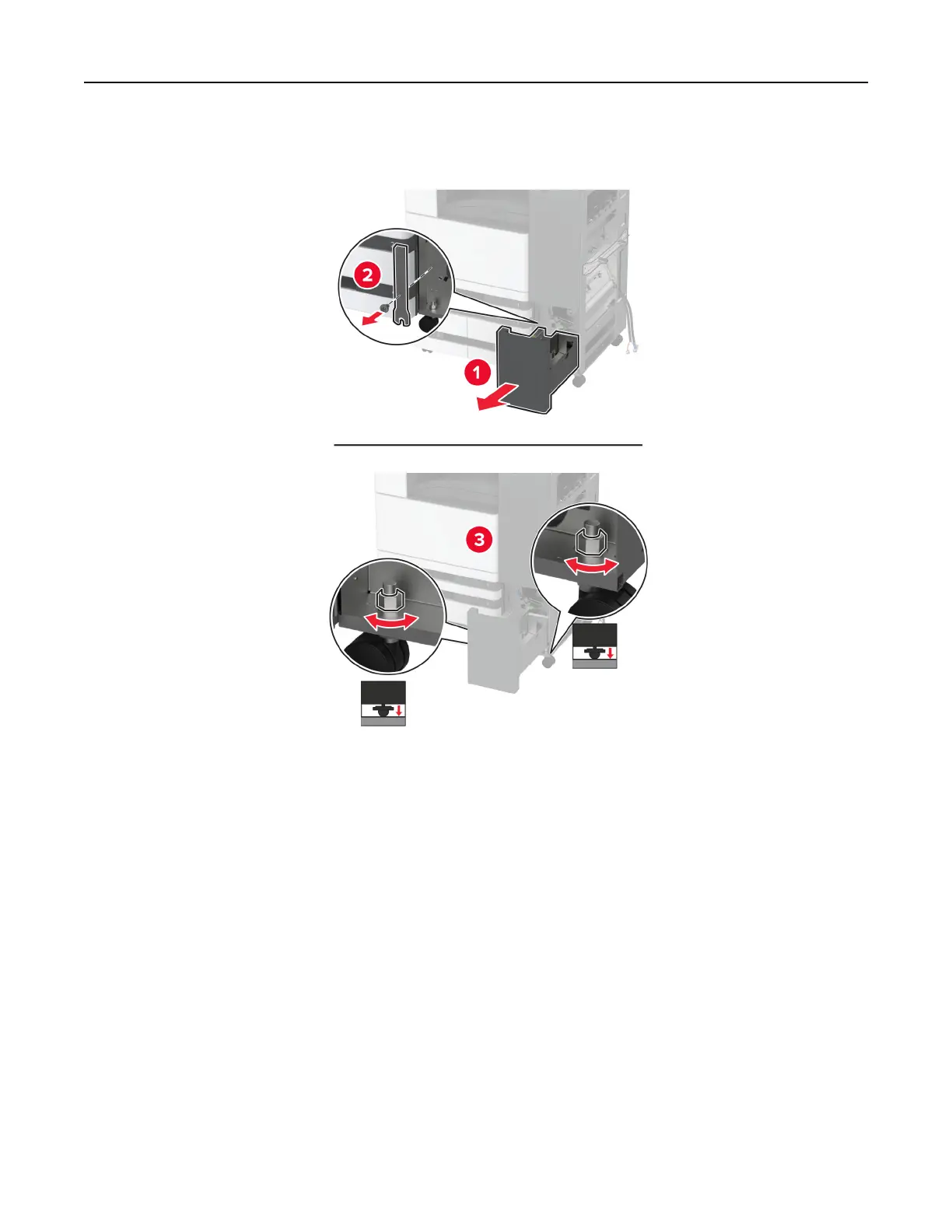

12 Remove the wrench, and then adjust the leveling screws to make sure that the front of the ﬁnisher has the

same height as the printer.

Set up, install, and conﬁgure 155
