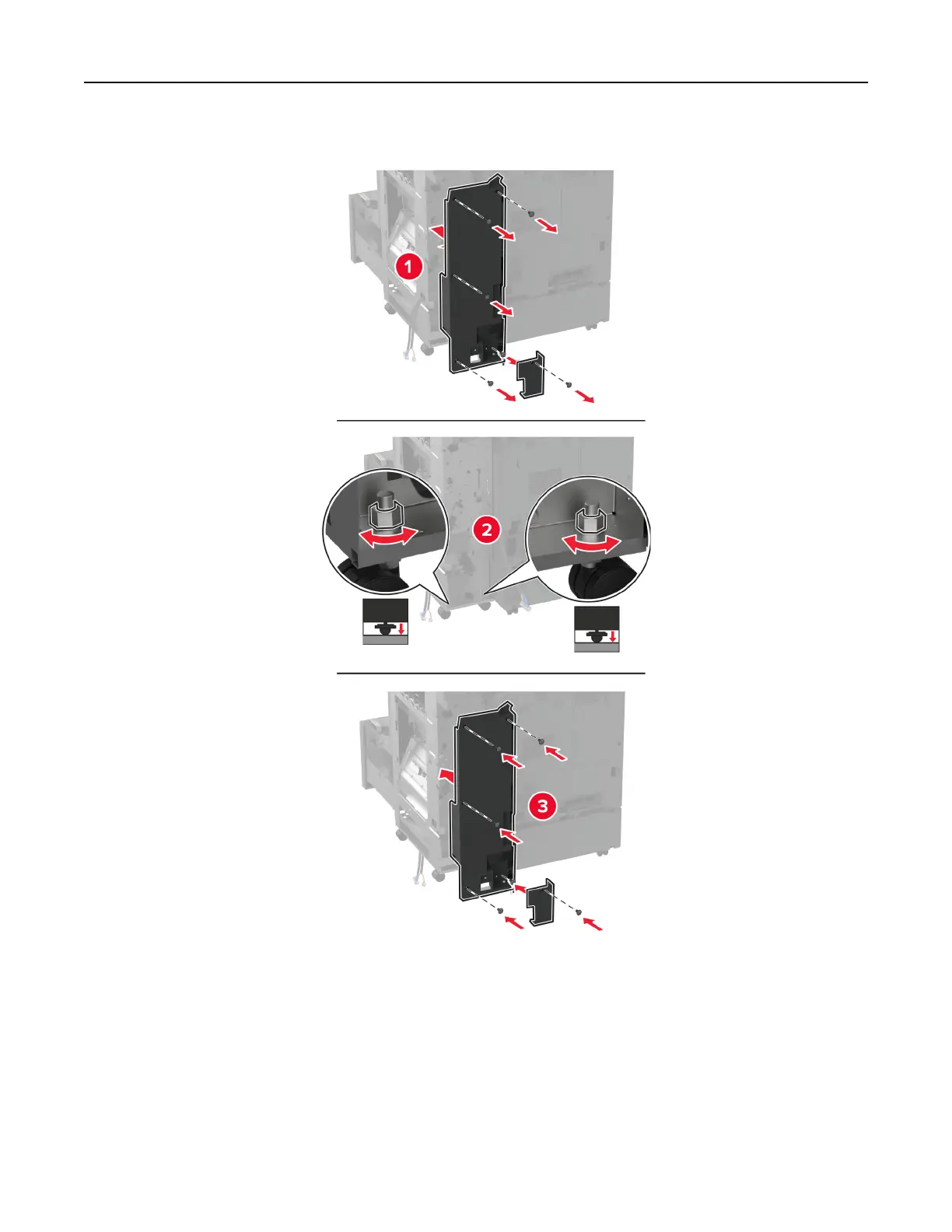

13 Adjust the leveling screws to make sure that the rear of the ﬁnisher has the same height as the printer.

Set up, install, and conﬁgure 156
