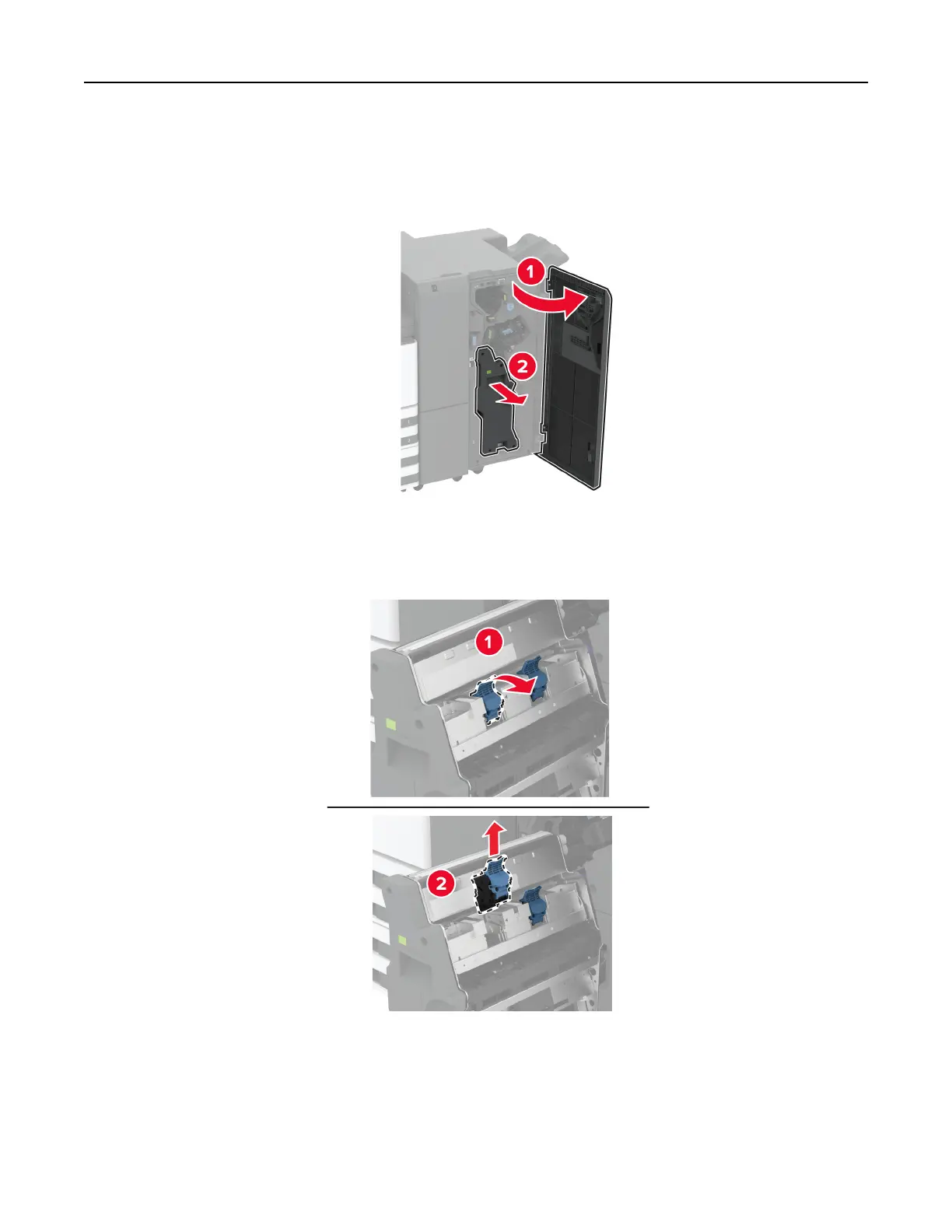

Replacing the staple cartridge holder in the booklet ﬁnisher

1 Open the ﬁnisher door, and then pull out the booklet maker.

2 Remove the used staple cartridge holder.

Maintain the printer 384
