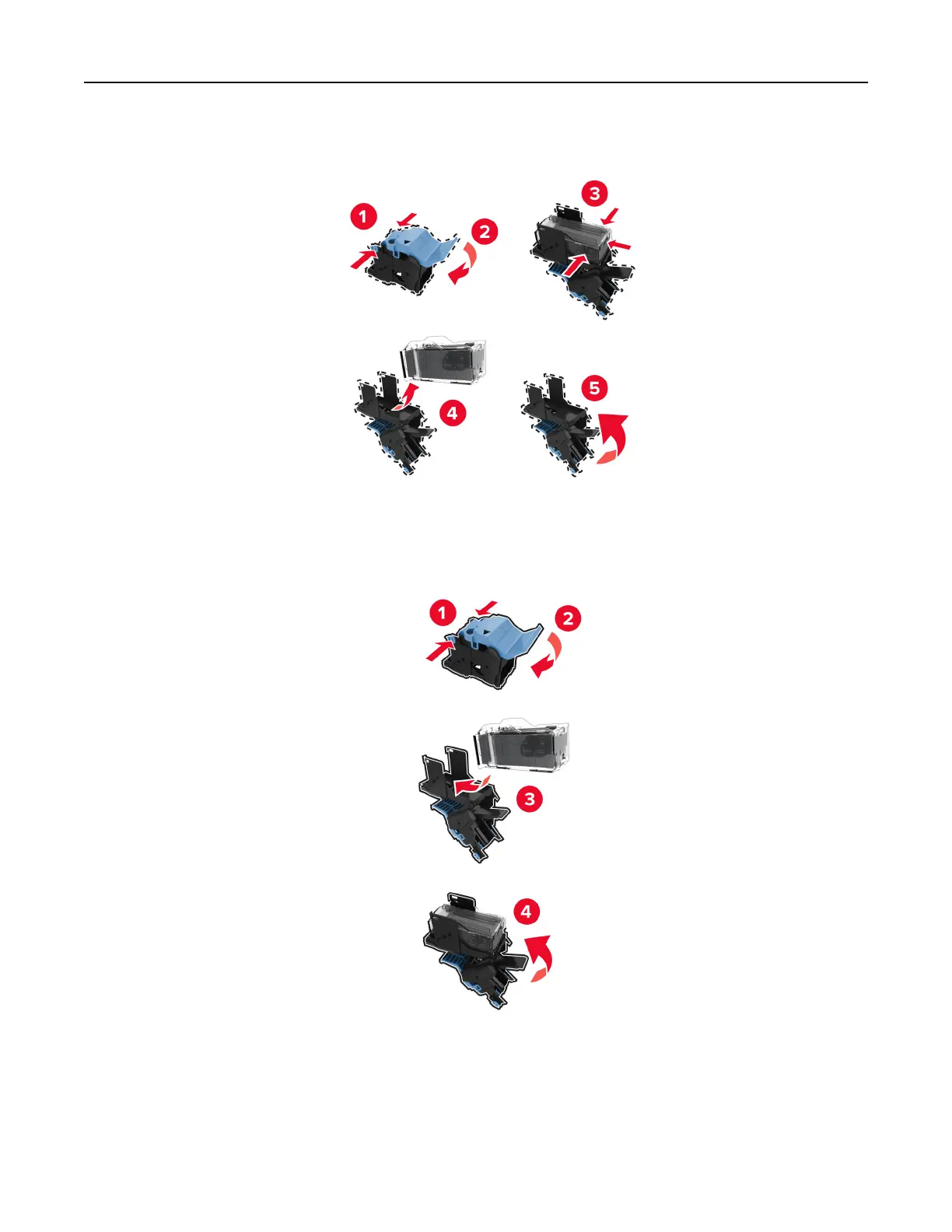

3 Remove the staple cartridge.

4 Unpack the new staple cartridge holder.

5 Insert the staple cartridge into the new staple cartridge holder.

Maintain the printer 385
