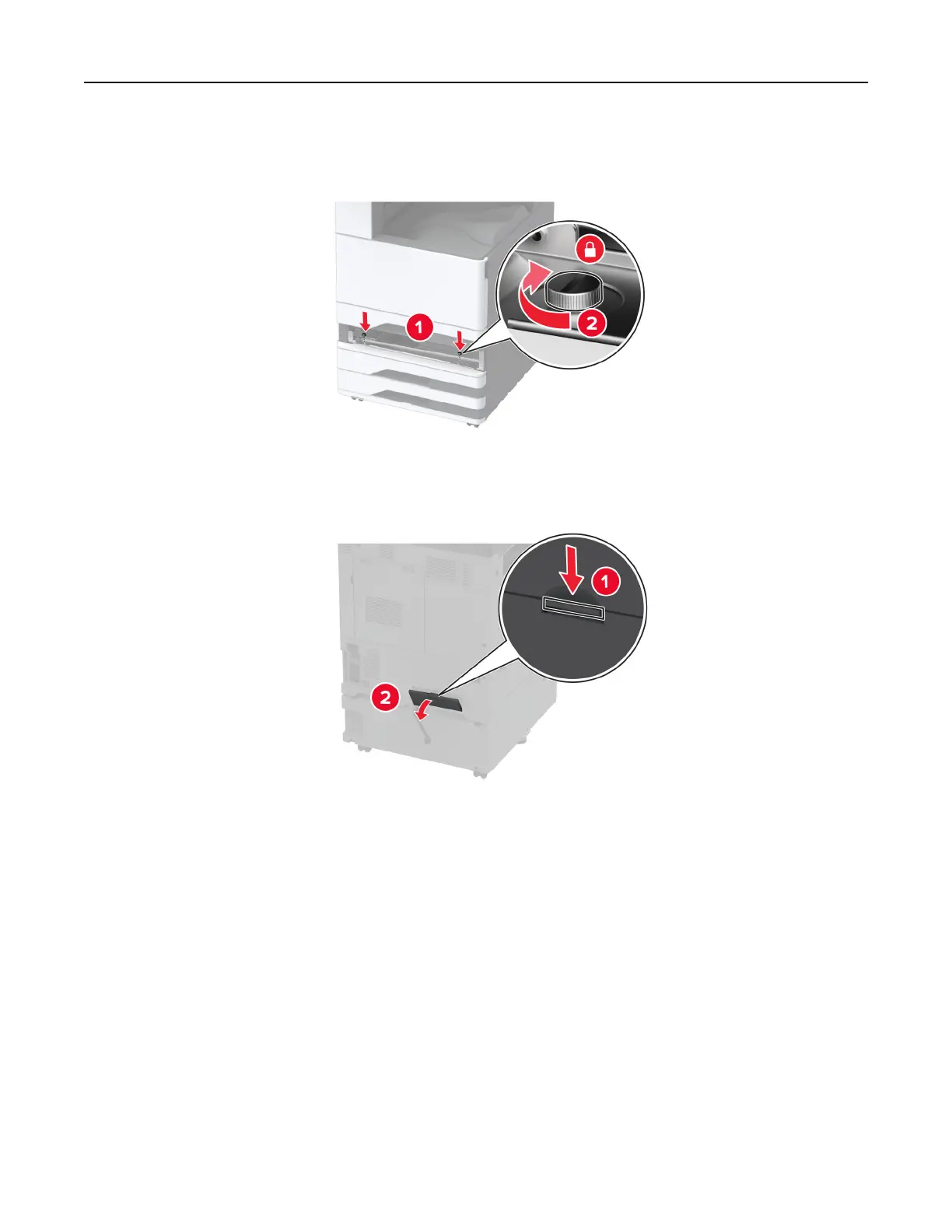

10 Secure the optional tray to the printer with screws.

11 Insert tray 2.

12 Remove the connector cover from the rear of the printer.

Set up, install, and conﬁgure 92
