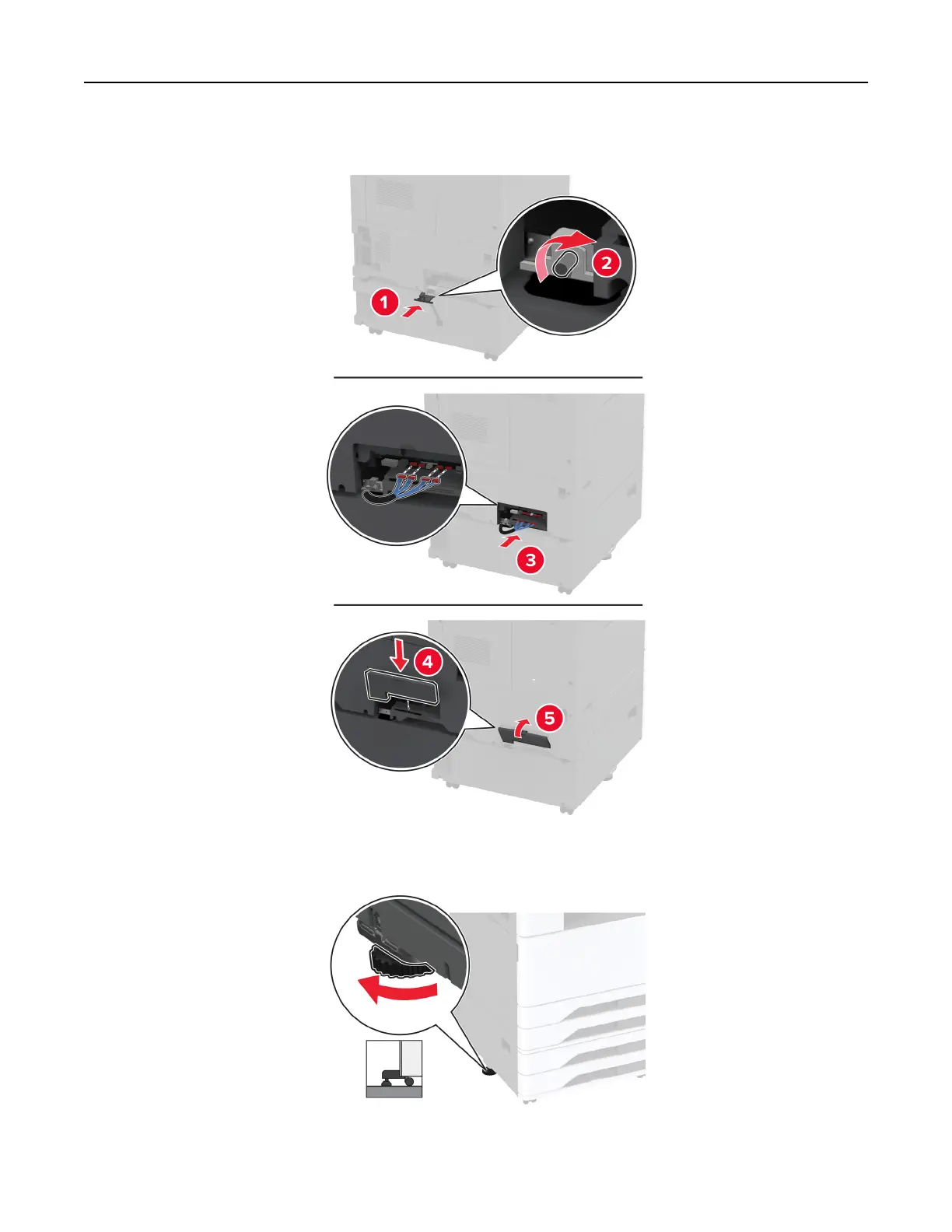

13 Connect the tray connector to the printer, and then attach the cover.

14 Adjust the levelers to make sure that all sides of the printers have the same height.

Set up, install, and conﬁgure 93
