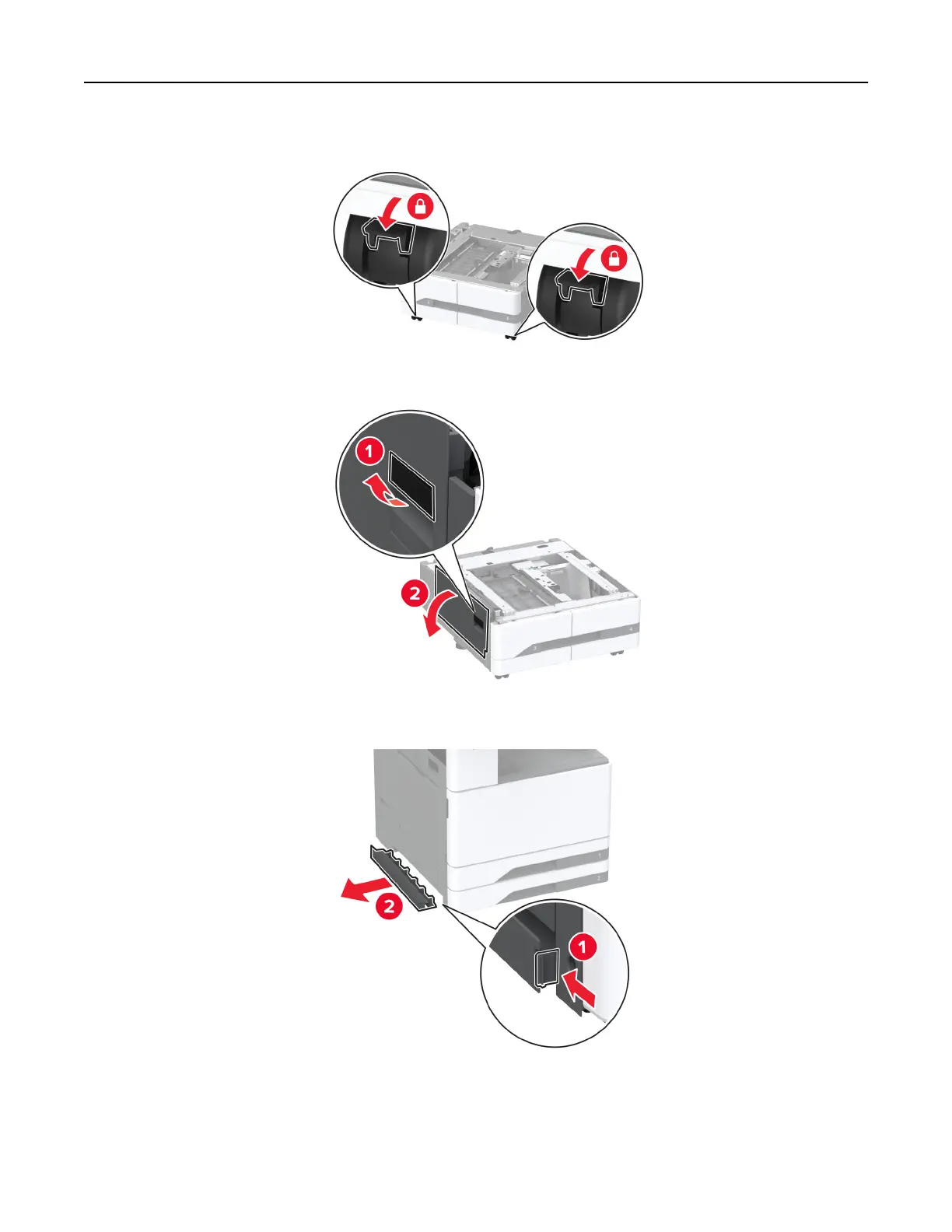

5 Lock the casters to keep the optional tray from moving.

6 Open door B.

7 Remove the option installation cover under the left side of the printer.

Set up, install, and conﬁgure 97
