Lexmark E350d

4-42 Lexmark™ E350d, E352dn
4512-420, -430
Upper front frame group removal
1.
Open the front cover.

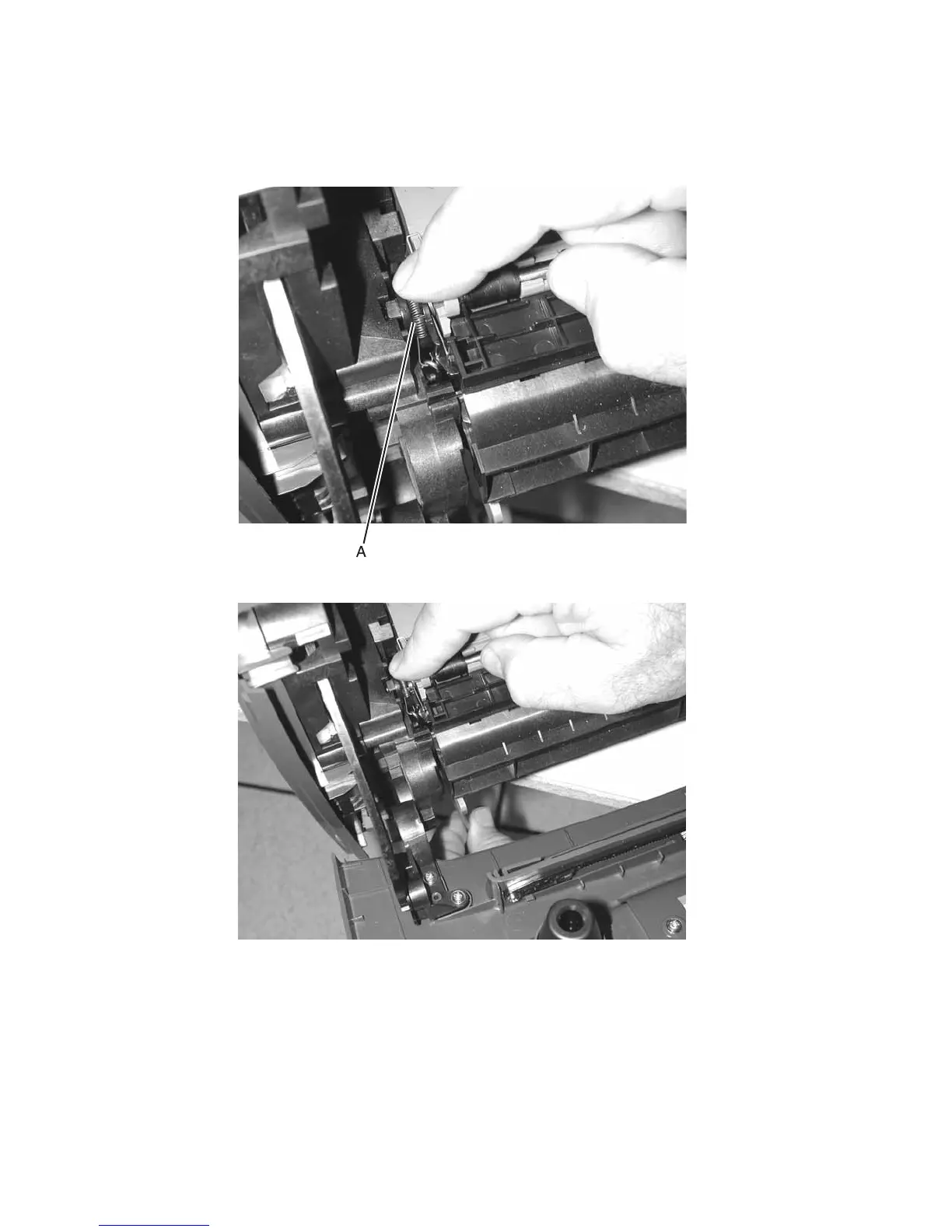

2. Unhook the front end of the springs (A) on the right and left sides of the upper frame.
3. Insert the flat end of the spring hook through the front corner opening.
4. Push out on the latches by rotating the spring hook while lifting the corner.
5. Repeat for the left side, and remove the assembly.
