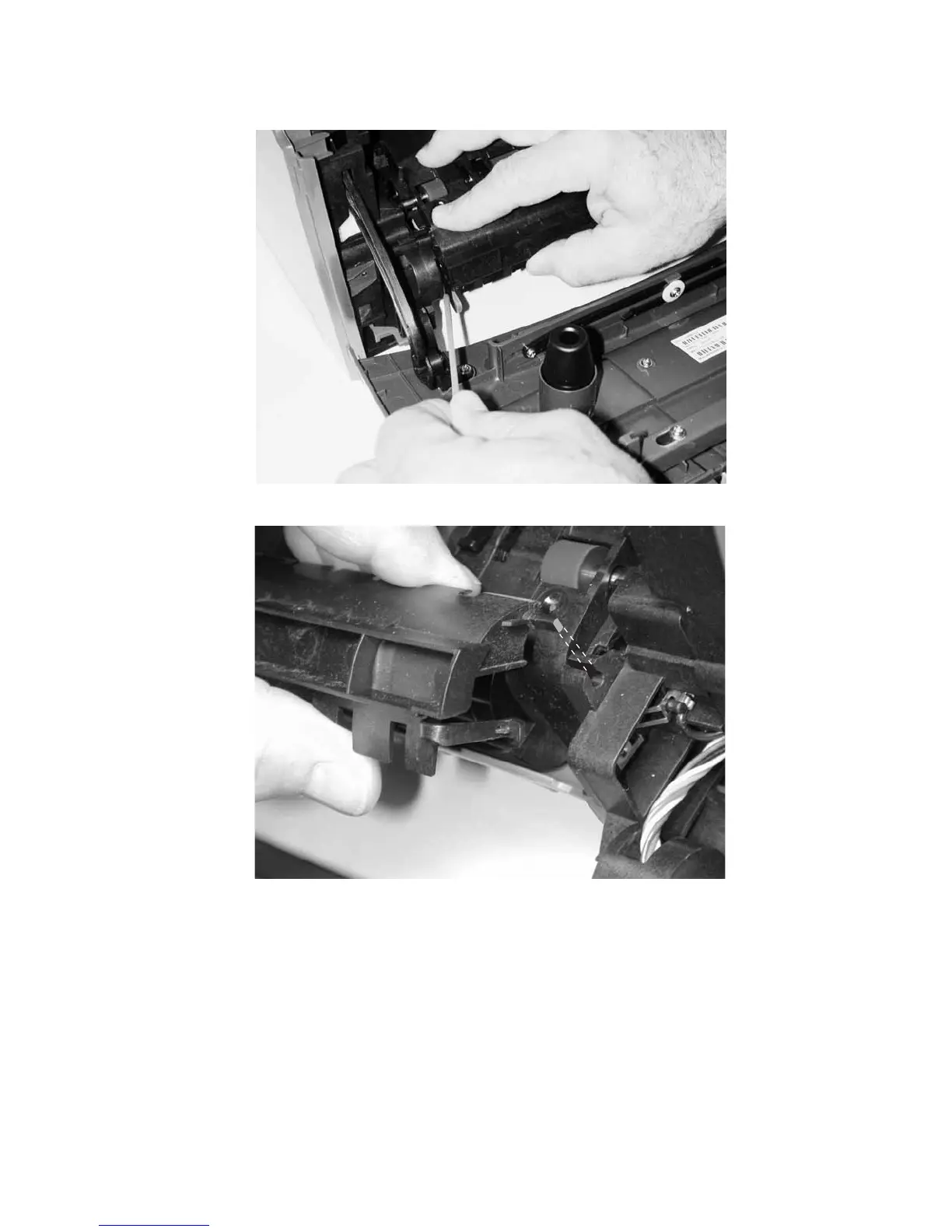

6. Unlatch the left and right sides of the front cover guide with the spring hook.
7. Lift the right side to align the flats on the guide shaft with the opening.
8. Slide the shaft through the opening.
9. Slide the cover to the right to free the left side, and remove the front cover guide.
Installation note:
Before installing the upper front assembly, anchor the right spring on its rear anchor, and tape the loose end to
maintain tension. Anchor both ends of the left spring. Carefully lift the left spring to slide the left end of the
assembly under it. Snap the assembly into place, and attach the front of the right spring.
