Lexmark M5270 Service Manual

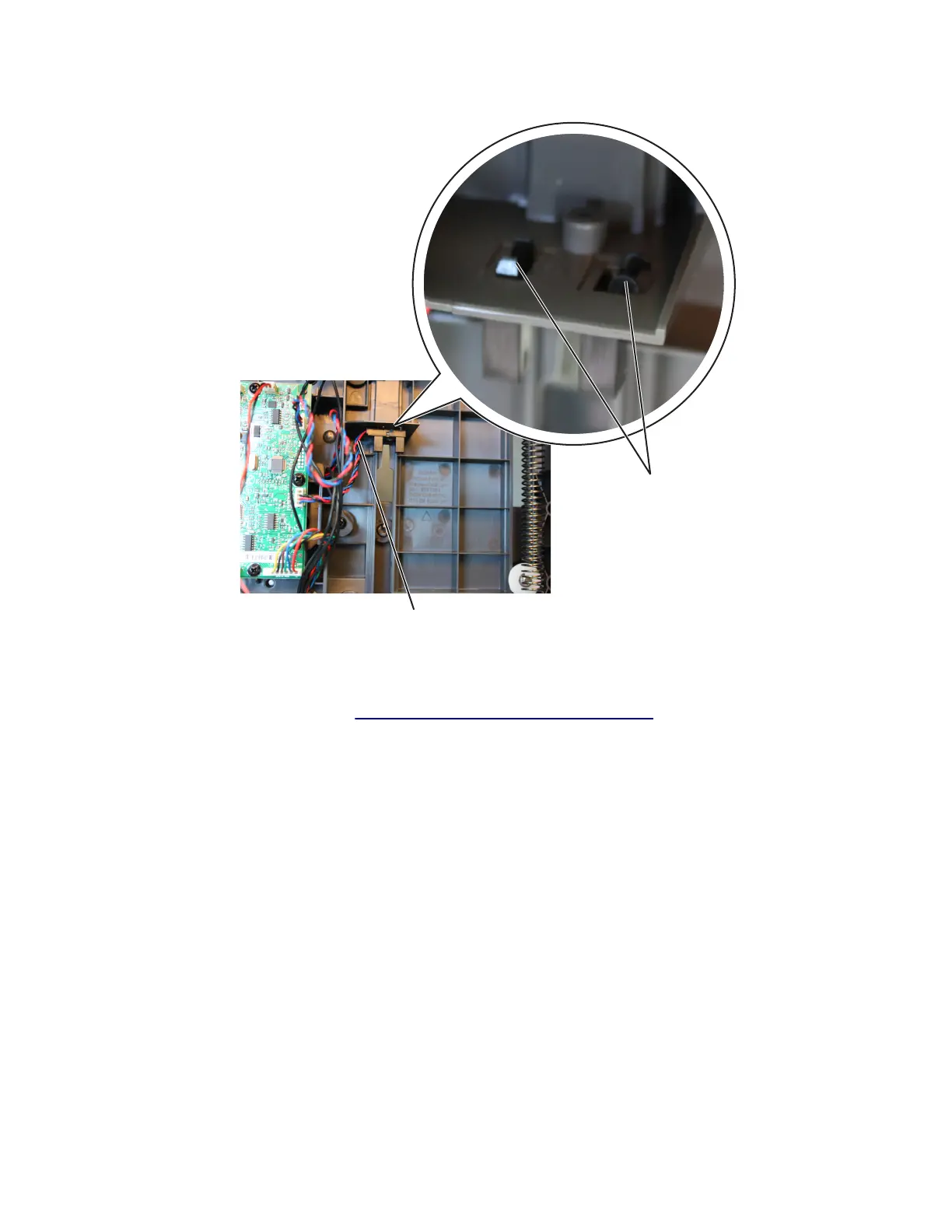

3 Disconnect the cable (B), and then remove the sensor.
A
B
HCOE bin spring removal
1 Remove the HCOE left cover. See “HCOE left cover removal” on page 550.
2 Unhook the spring (A), and then remove.
Note: The spring on the opposite side can be removed using the same method shown.
4064
Parts removal
557

Lexmark M5270 Specifications

General

Print Resolution	1200 x 1200 dpi
Processor Speed	1.2 GHz
Print Technology	Laser
Standard Memory	1 GB
Maximum Memory	4 GB
Standard Input Capacity	550 sheets
Connectivity	Ethernet, USB, Wireless
Hard Disk	Option available
Recommended Monthly Page Volume	5, 000 to 50, 000 pages
Network Protocol	TCP/IP, IPv4, IPv6
Printable Area	8.5 x 14 inches
Paper Handling Input, Standard	550 sheets
Paper Handling Output, Standard	250 sheets
Media Types Supported	Card Stock, Envelopes, Paper Labels, Plain Paper, Transparencies
Media Sizes Supported	Letter, Legal, Executive, A4, A5, B5, Envelopes
Standard Ports	USB 2.0, Gigabit Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Linux, Mac OS X
Duplex Printing	Standard
