Motor (staple finisher diverter) removal
1 Remove the staple
finisher
left cover. See “Staple
finisher
left cover removal” on page 584.

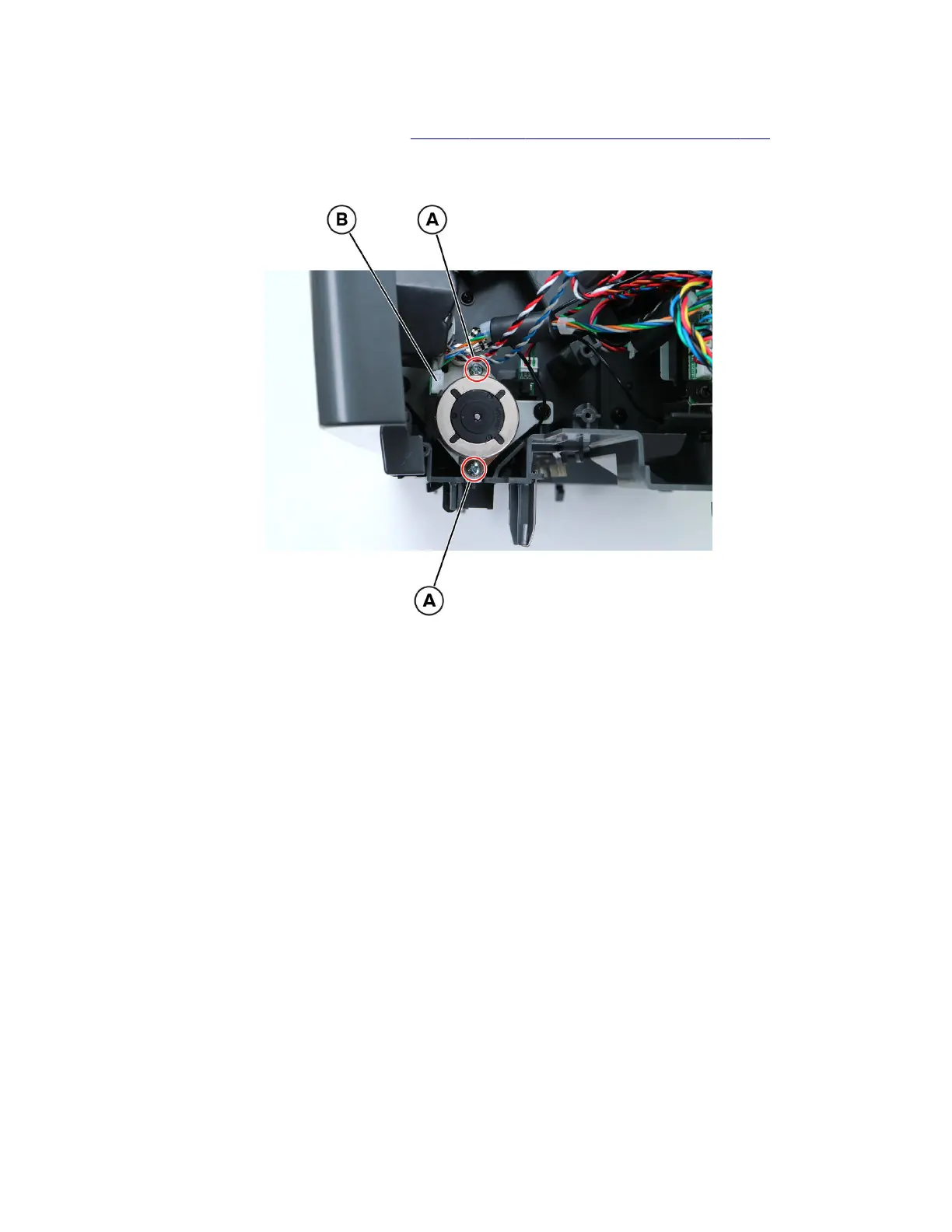

2 Remove the two screws (A), and then disconnect the cable (B).
3 Remove the motor.
4064
Parts removal
598
