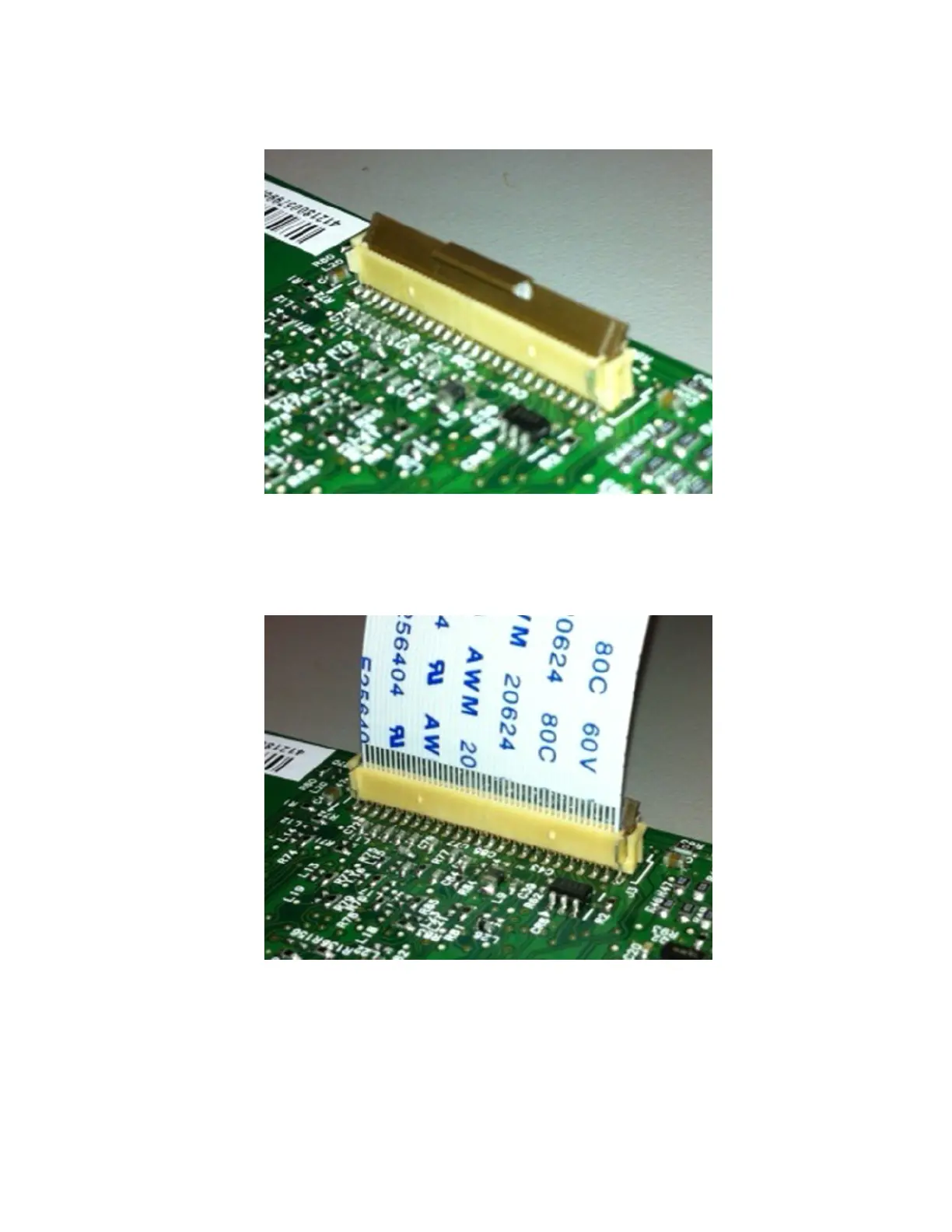

Inserting a cable into the vertical mount contact connector
1 When installing the cable, check the locking actuator to verify it is in the open position.
2 Insert the cable with the contacts on the cable away from the locking actuator. Insert the cable on top of the
actuator.
Note: Verify that the cable is installed squarely into the connector. If the cable is not squarely installed,
then intermittent failures could occur.
4600-830, -835, -895
Parts removal
169
