Aligner removal
1 Open the front door, and then remove the toner cartridge and imaging unit.
2 Remove tray 1.
3 Remove the top cover. See “Top cover removal” on page 455.
4 Remove the left cover. See “Left cover removal” on page 409.
5 Remove the duplex/MPF tray. See “Duplex/MPF tray removal” on page 434.
6 Remove the inner guide deflector. See “Inner guide deflector removal” on page 438.

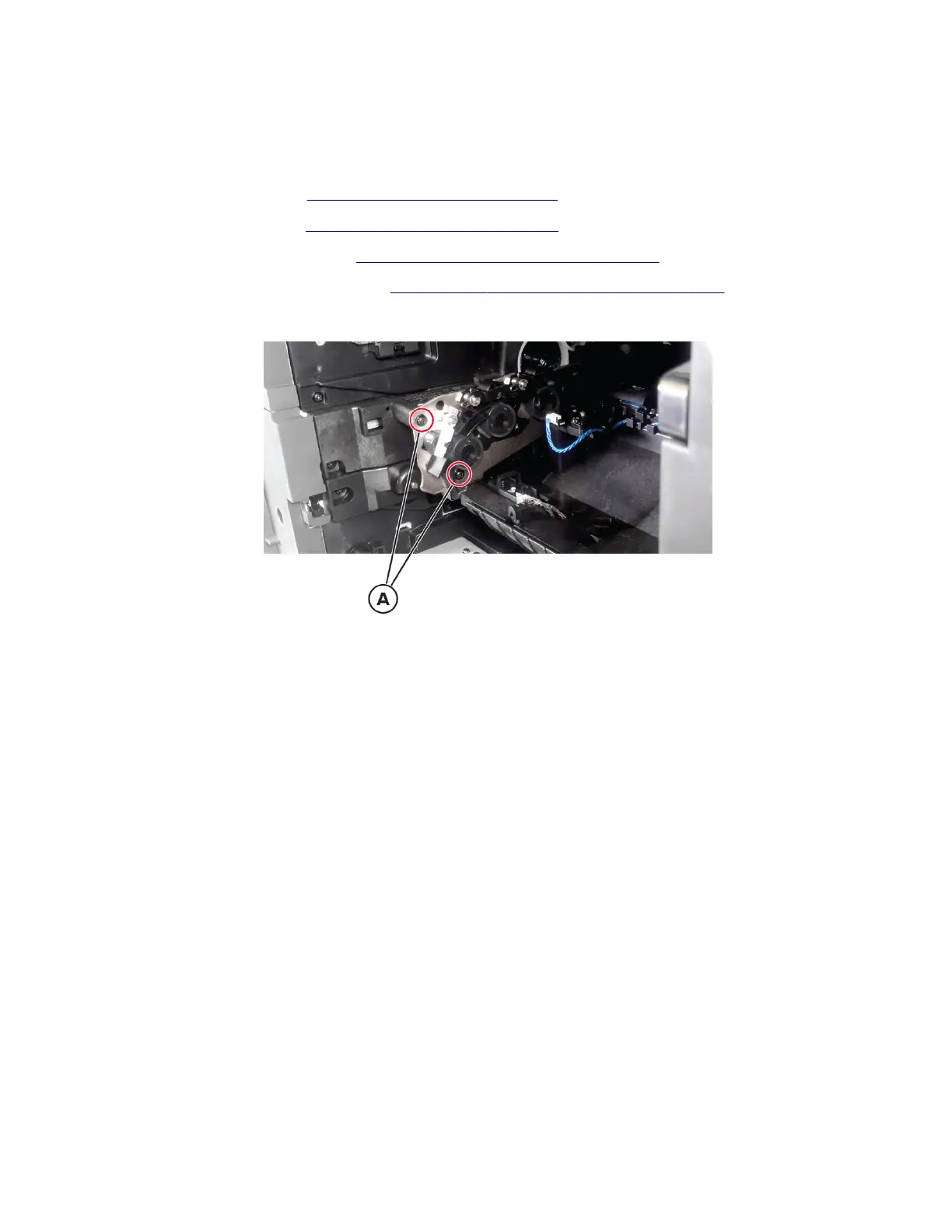

7 Remove the two screws (A).
