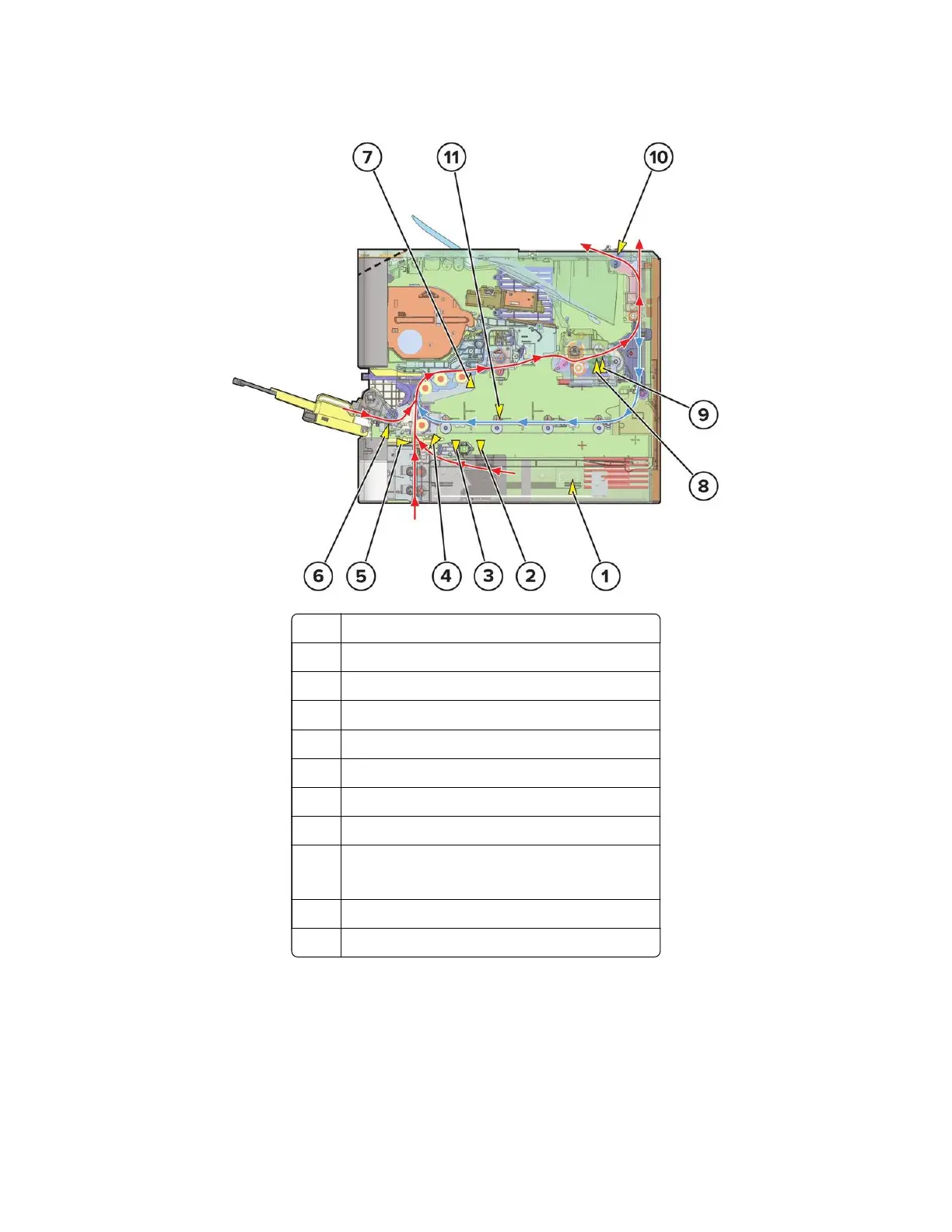

Printer sensor locations
1 Sensor (paper size)
2 Sensor (tray 1 paper present)
3 Sensor (pick position)
4 Sensor (pick)
5 Sensor (tray 1 pass‑through)
6 Sensor (MPF paper present)
7 Sensor (input)
8 Sensor (fuser exit)
9 Sensor (narrow media)
Note: This part is found in hot roll fusers only.
10 Sensor (exit)
11 Sensor (duplex path)
