Sensor (staple finisher door) removal
1 Remove the staple
finisher
left cover. See “Staple
finisher
left cover removal” on page 584.

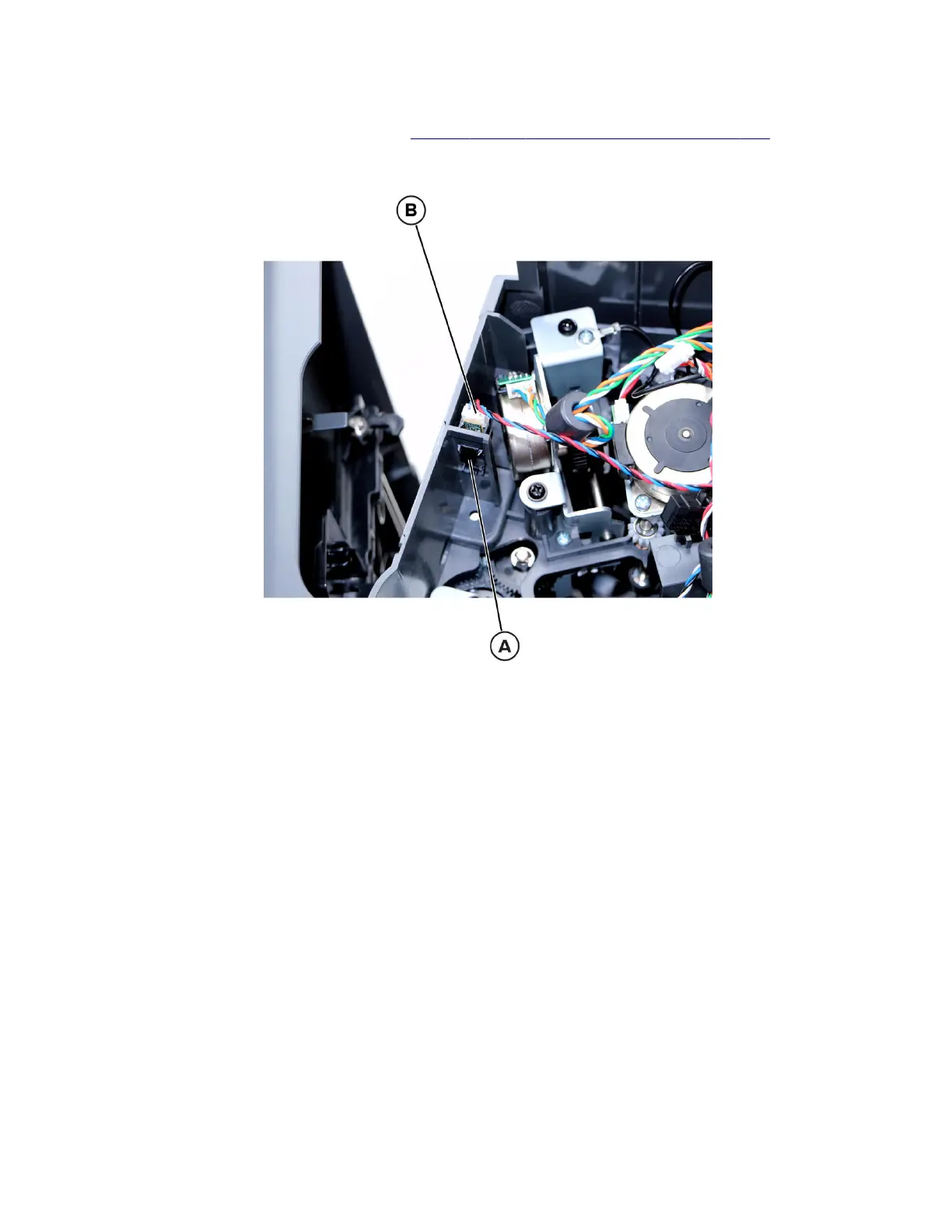

2 Remove the sensor retainer (A), and then disconnect the cable (B).
3 Remove the sensor.
4064
Parts removal
591
