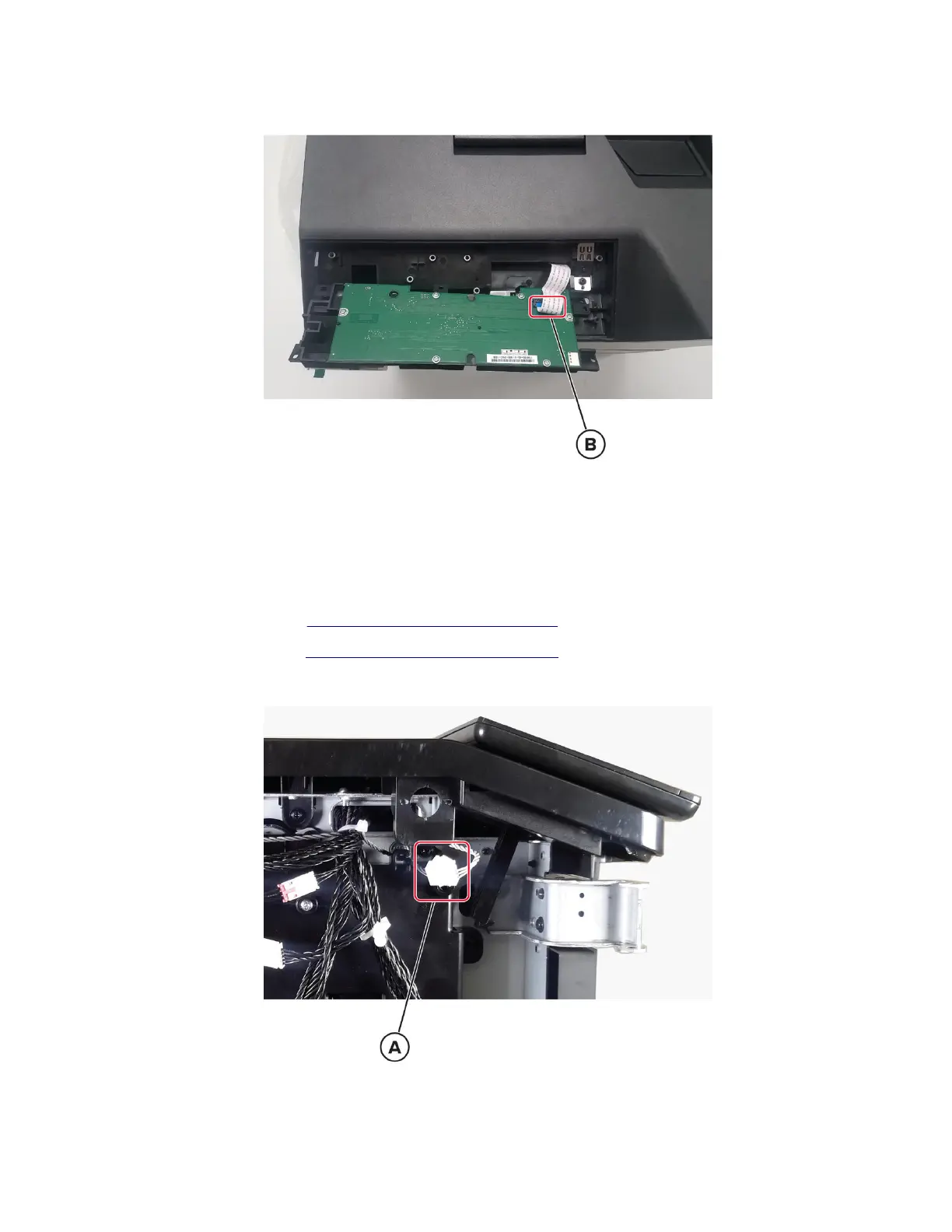

3 Behind the control panel, disconnect the cable (B).
4 Remove the control panel.
Sensor (toner low) removal
1 Open the front door, and then remove the toner cartridge and imaging unit.
2 Remove the top cover. See “Top cover removal” on page 455.
3 Remove the left cover. See “Left cover removal” on page 409.
4 Disconnect the sensor cable (A).
4064
Parts removal
446
