Lexmark MS825 - Sensor (2100-Sheet Tray Near Empty) Removal

Sensor (2100-sheet tray near empty) removal
1 Remove the 2100-sheet tray insert. See “2100-sheet tray insert removal” on page 472.

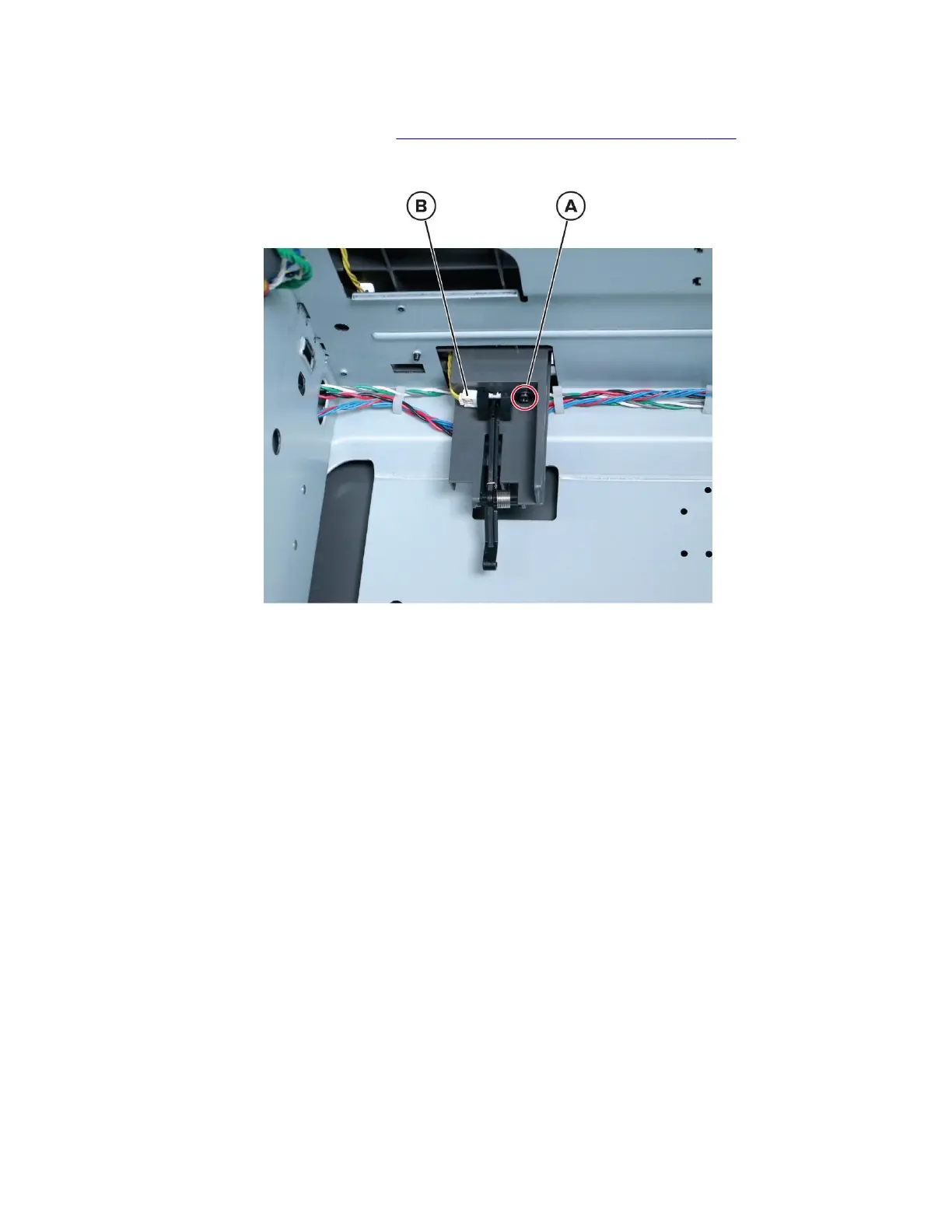

2 Remove the screw (A), and then disconnect the sensor cable (B).
3 Remove the sensor.
4064
Parts removal
490
