Main drive gearbox removal
1 Remove the left cover. See “Left cover removal” on page 264.

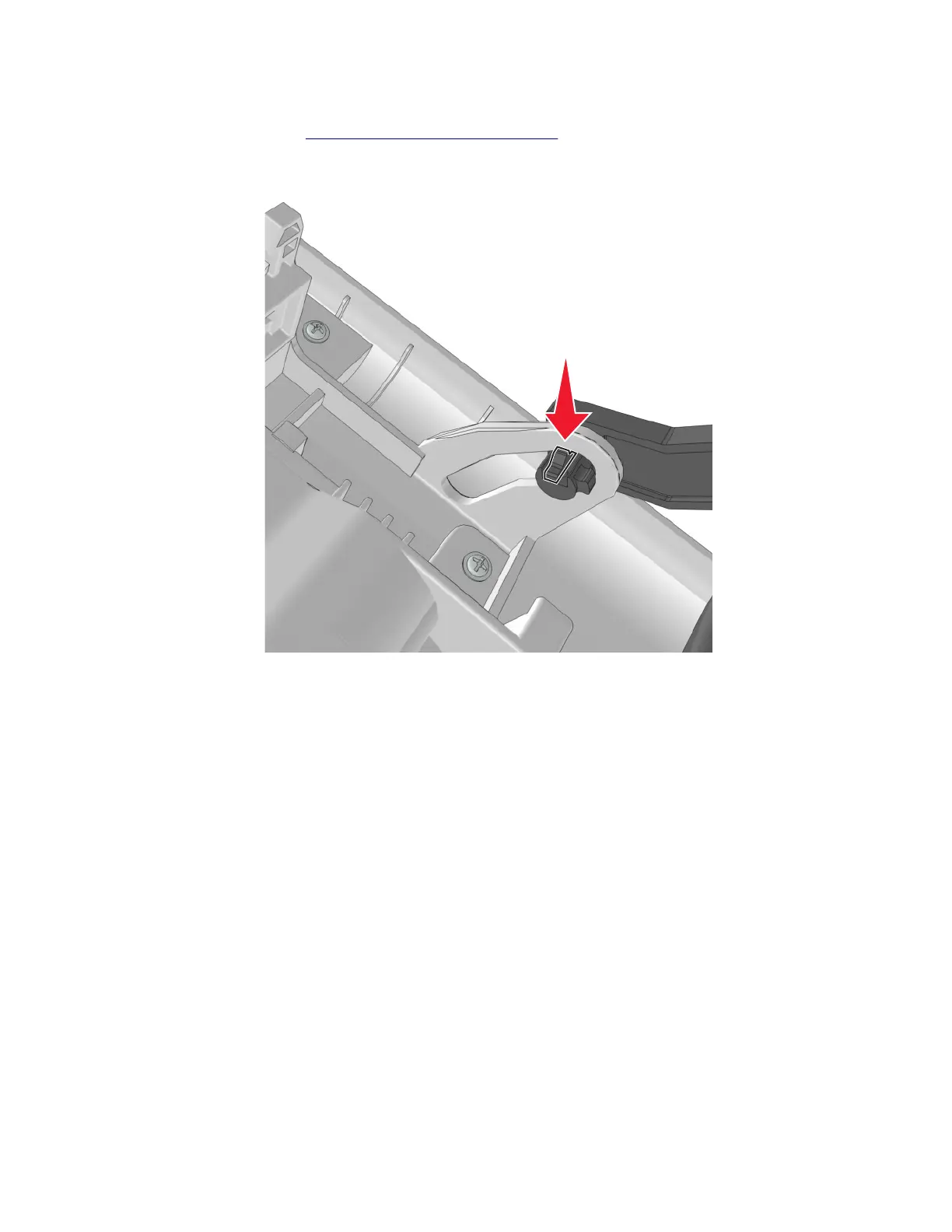

2 Squeeze the latch, and then detach the link from the front door.
7016
Repair information
266
