MPF tray removal
1 Remove the front access cover. See “Front access cover removal” on page 316.

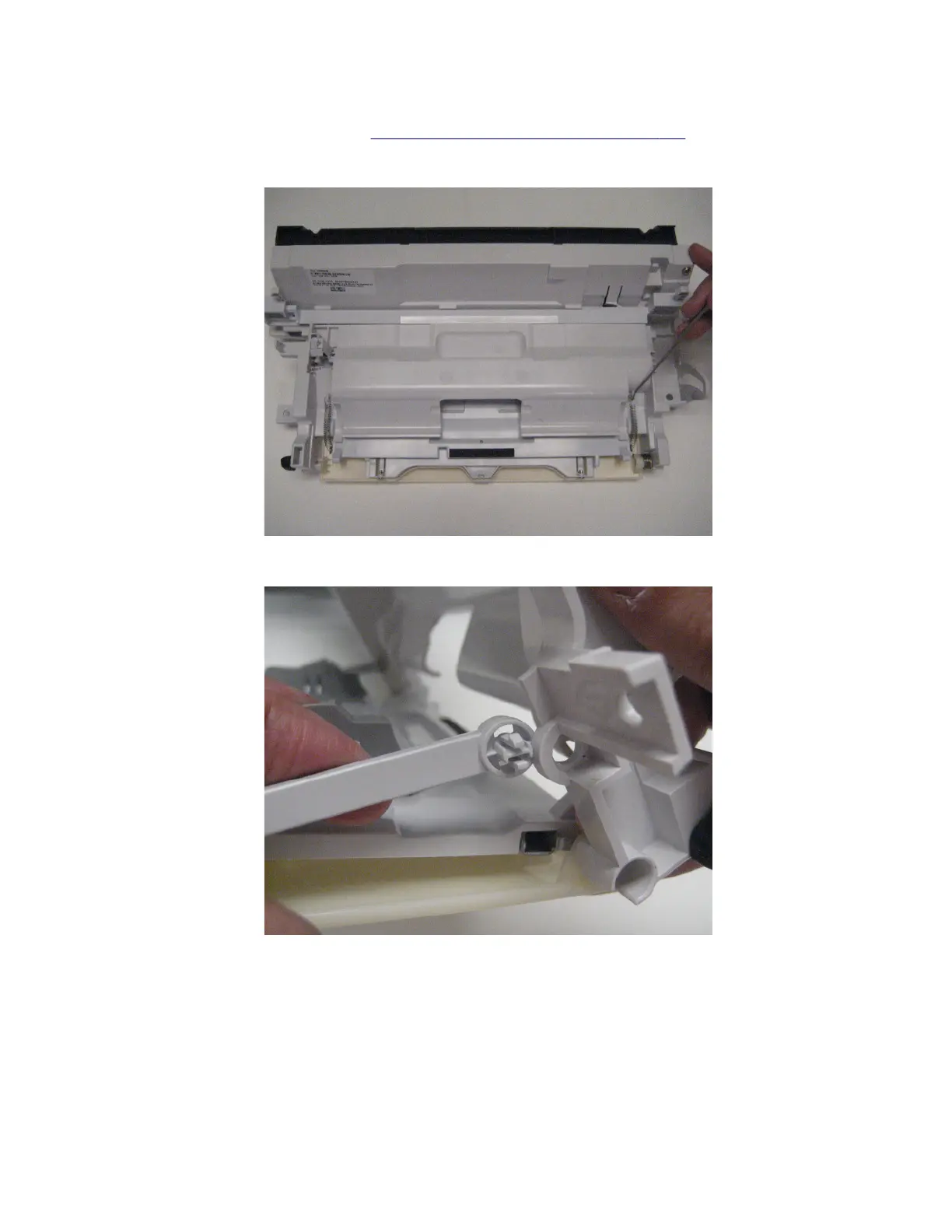

2 Using a spring hook, remove the two springs from the front access cover.
3 Disconnect the left and right MPF links from the front access cover.
7016
Repair information
311
