Lexmark MX611de - Stapler Service Cover Removal; Stapler Controller Card Removal; Stapler Left Tamper Motor Removal

Stapler service cover removal

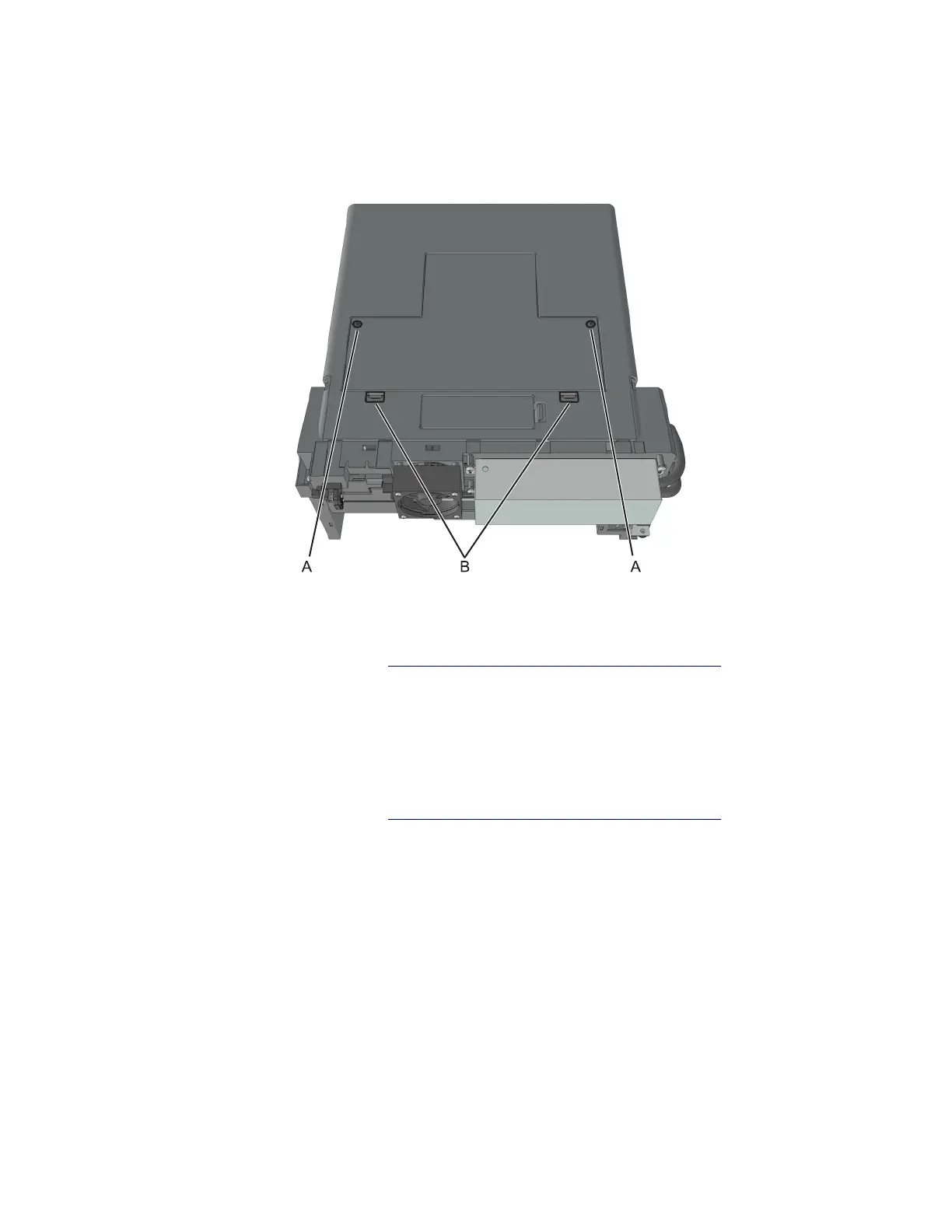

1 Remove the two screws (A) from the cover.
2 Press the latches (B) to release, and pull the service cover o the stapler.
Stapler controller card removal
1 Remove the stapler service cover. See “Stapler service cover removal” on page 397.
2 Disconnect all the cables from the controller card.
3 Remove the five screws (A), then pull the controller card o the stapler.
Stapler left tamper motor removal
1 Remove the stapler service cover. See “Stapler service cover removal” on page 397.
2 Disconnect the motor cable (A).
