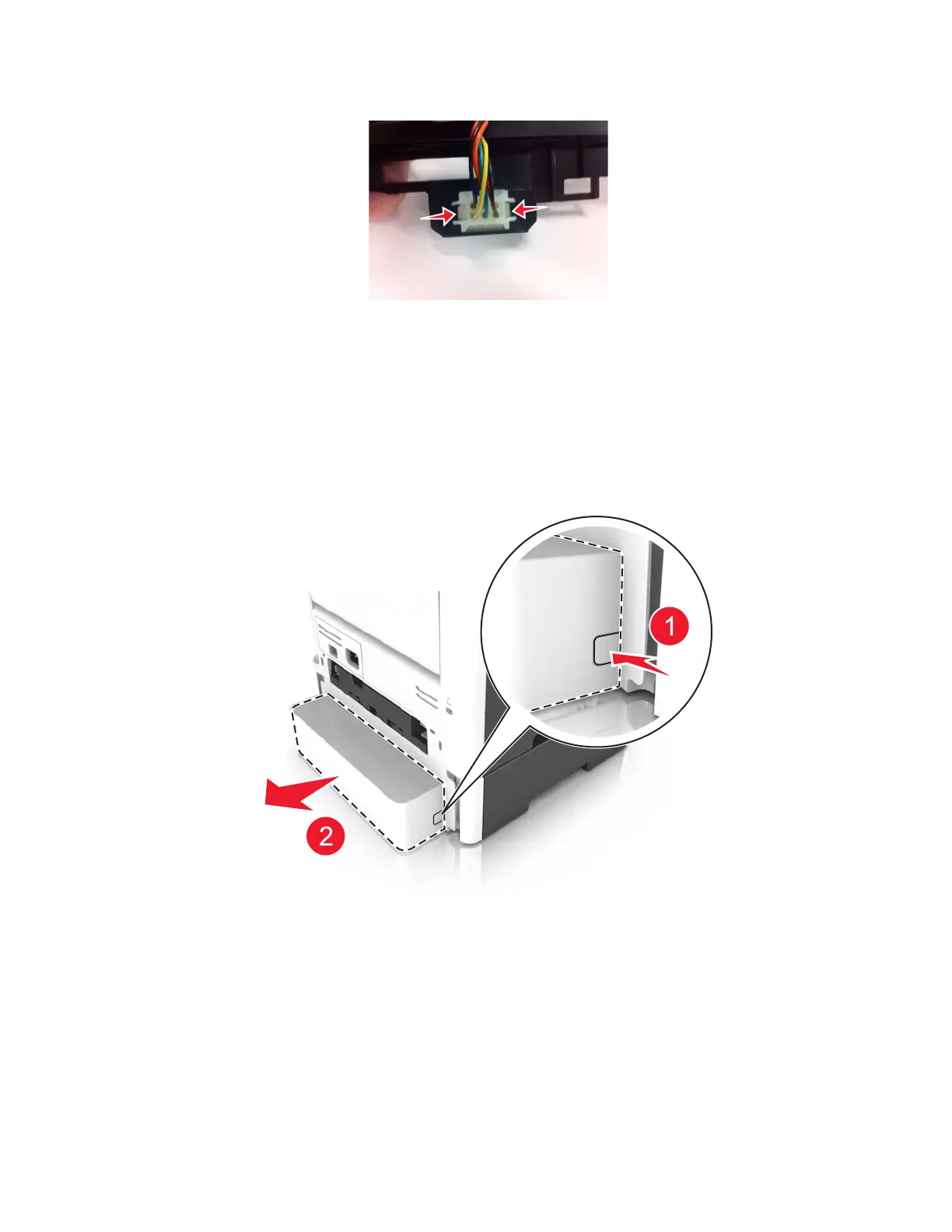

7 Squeeze the latches to release the connector, then push the connector o the guide.
Rear side removals
Dust cover removal
1 Press the latches on each side of the dust cover.
2 Remove the dust cover.
7016
Repair information
341
