Lexmark MX611de - ADF theory

Step 5: Clean

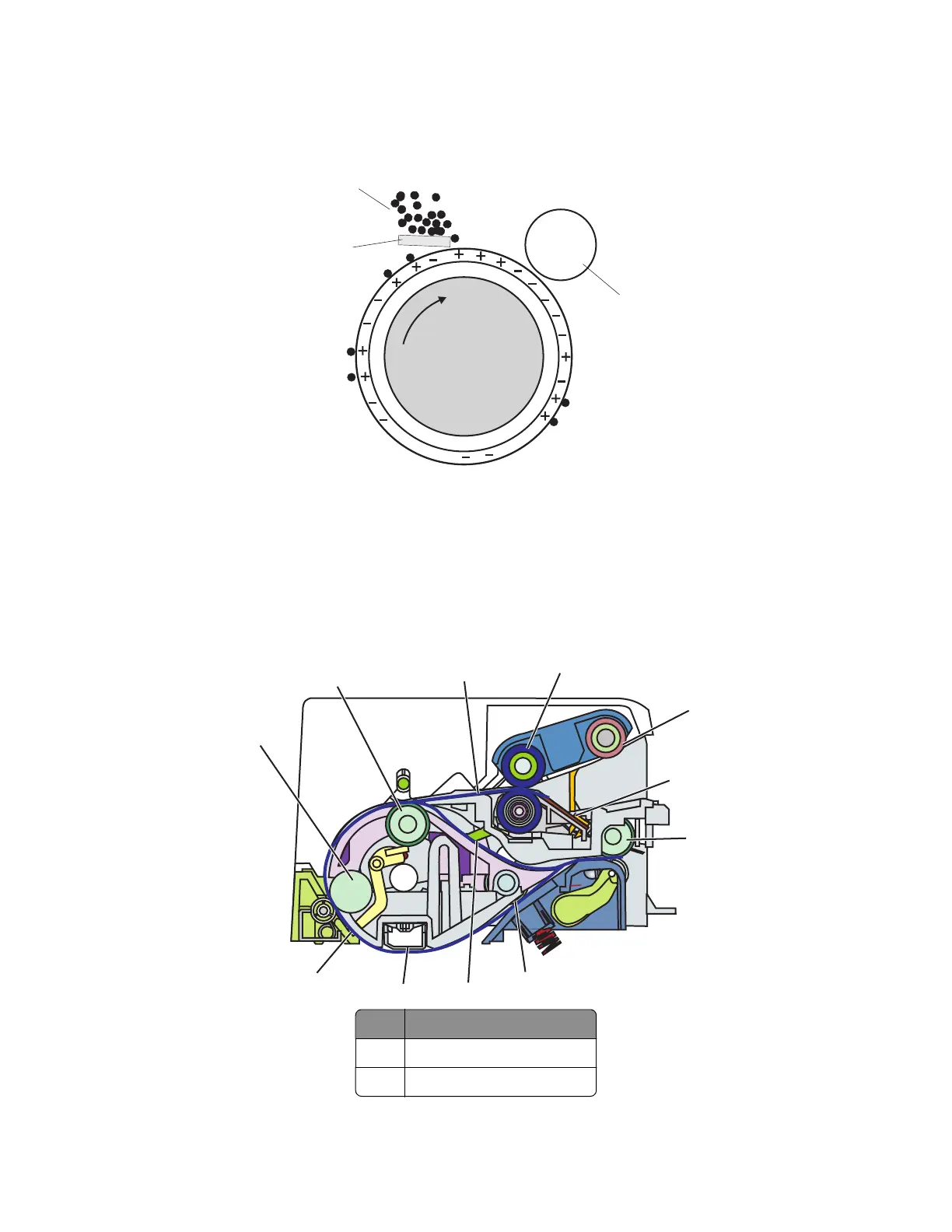

The cleaning blade removes any toner that remains on the photoconductor after the transfer process. The toner
removed is collected inside the imaging unit.
Cleaning Blade
Used Toner
Charge roll
DRUM
ADF theory
ADF theory of operation
ADF cross section
2
1
11
10
9
8
7
6
5
4
3
#Part
1 Document sensor
2 Pickup roller
7016
