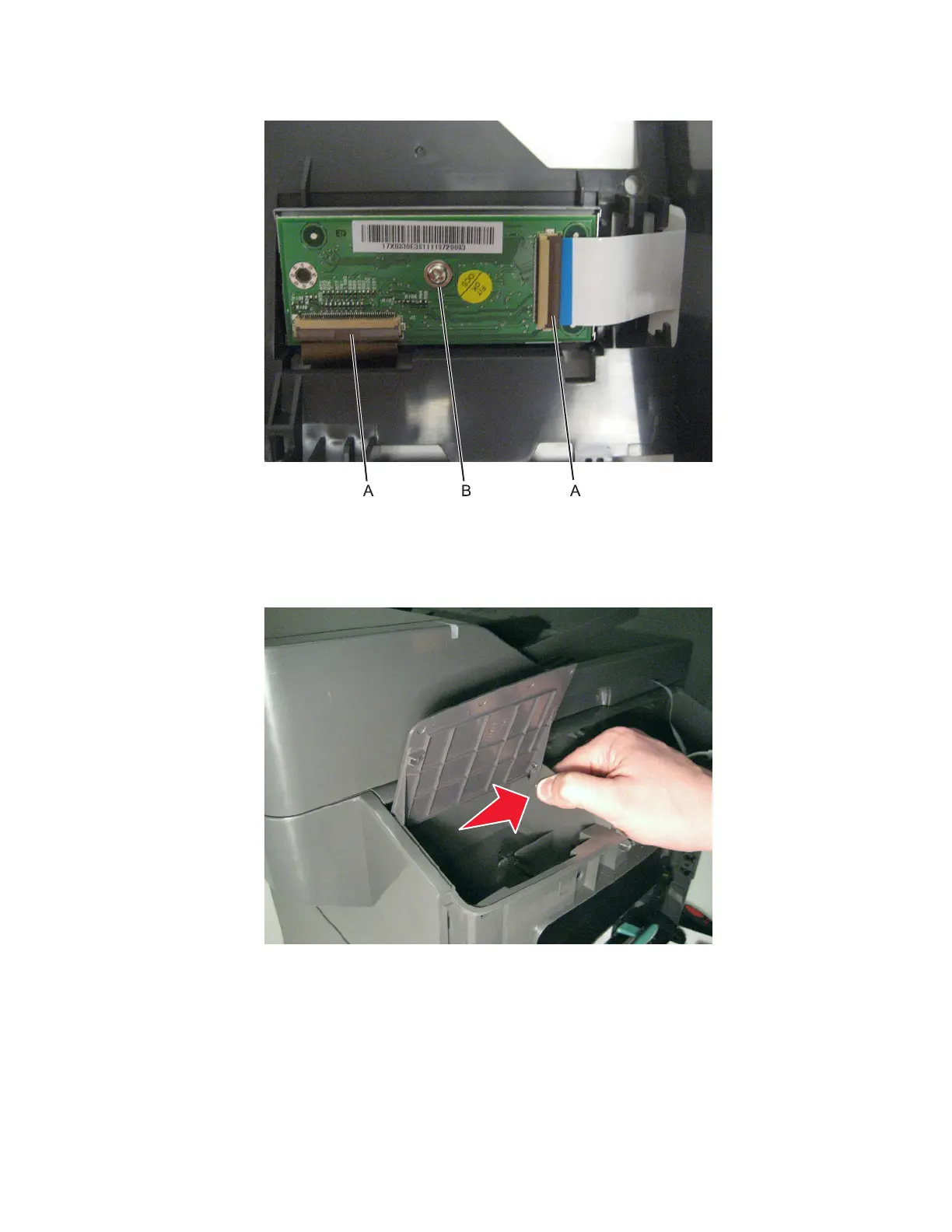

4 Remove the screw (B), then remove the interface card.
Control panel cover removal
1 Flex the frame to the right to release the hinge of the cover.
7016
Repair information
307
