Lexmark MX611de - Front bin Cover Removal

Front bin cover removal
1 Remove the name plate cover. See “Name plate cover removal” on page 295.

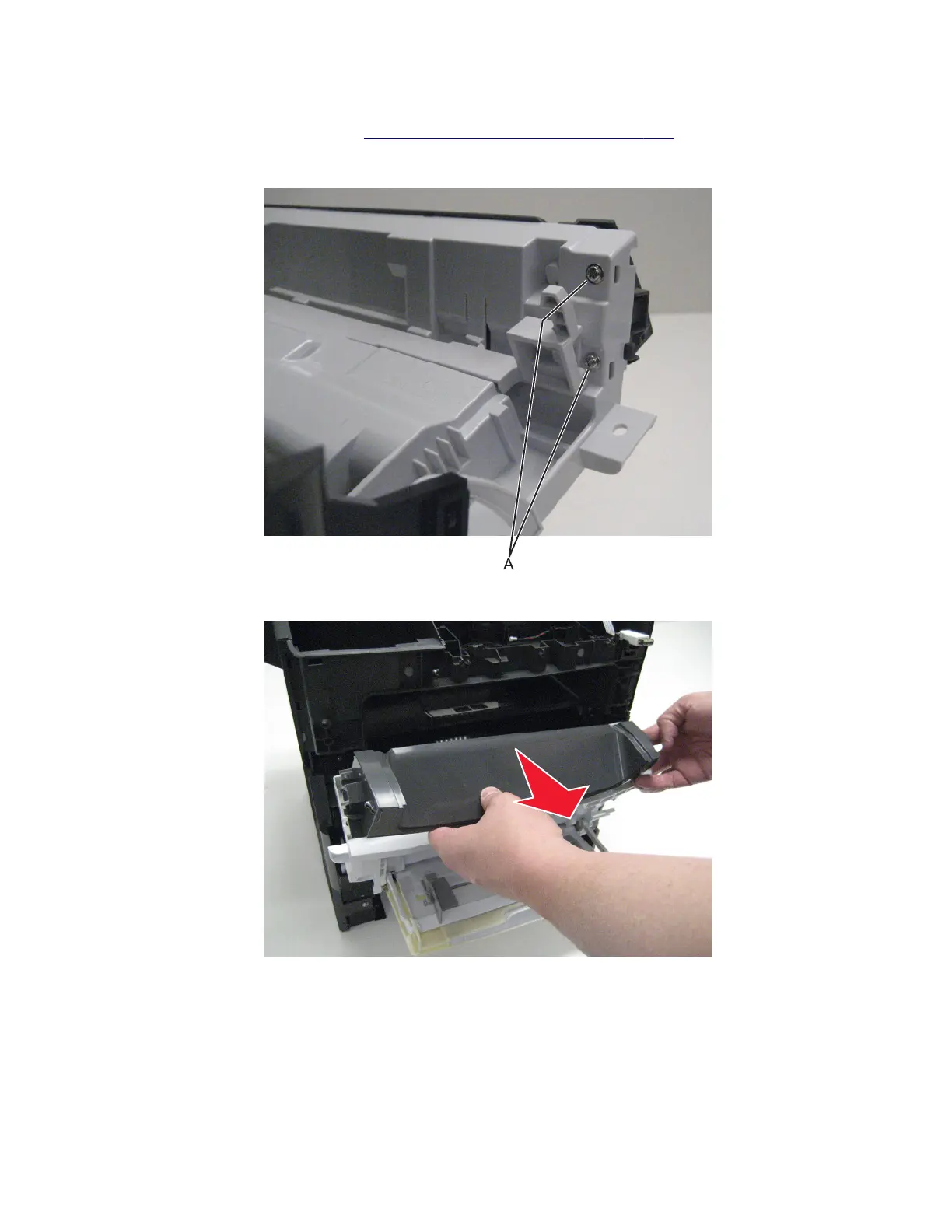

2 Remove the two screws (A) securing the front bin cover to the front access cover.
3 Lift the left side of the cover, and then remove the front bin cover.
7016
Repair information
297
