Lexmark MX611de - Stapler Door Close Limit Switch Removal

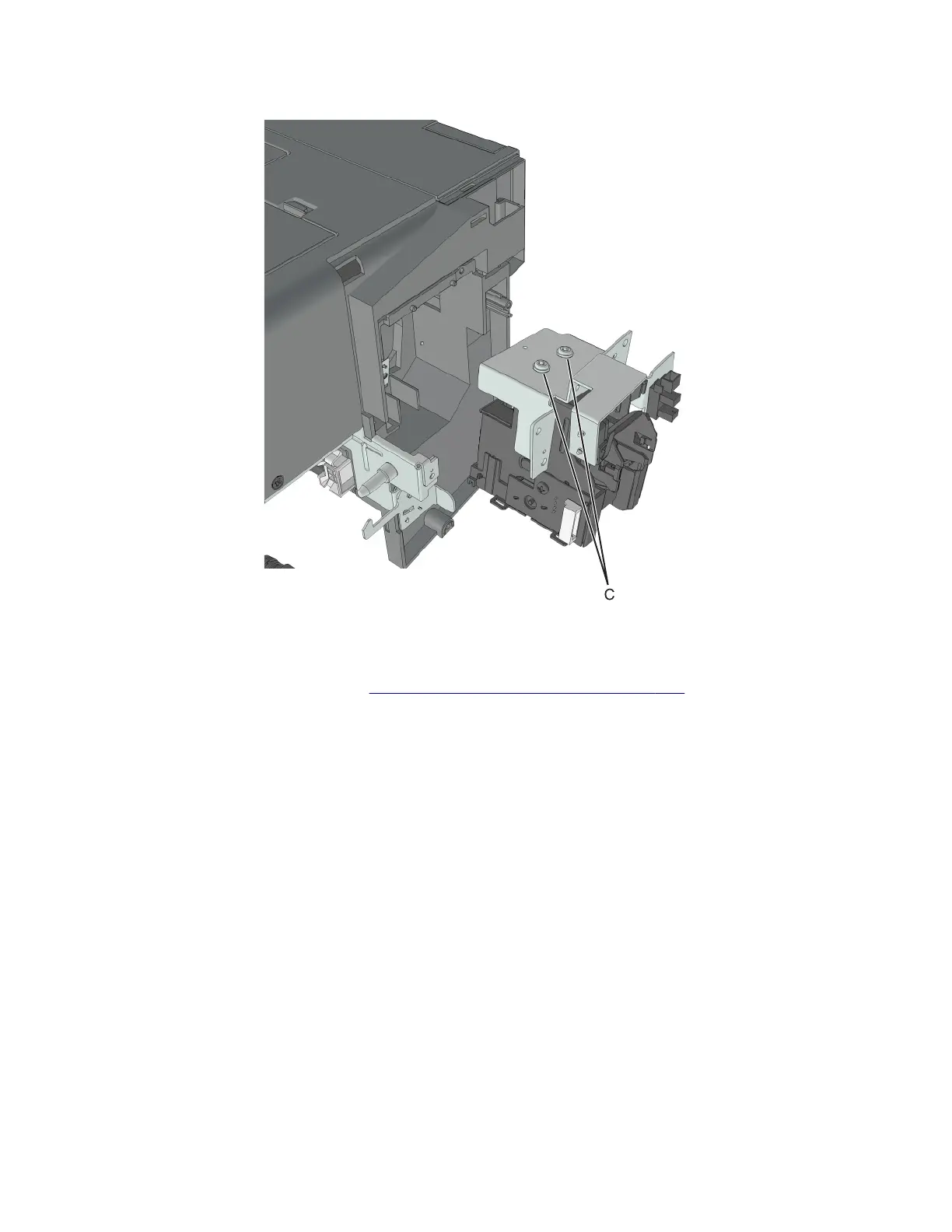

4 Remove the two screws (C), and remove the stapler carriage assembly.
Stapler door close limit switch removal
1 Remove the stapler right cover. See “Stapler right cover removal” on page 384.
2 Push down to release, then disconnect the switch cable (A).
7016
Repair information
389
