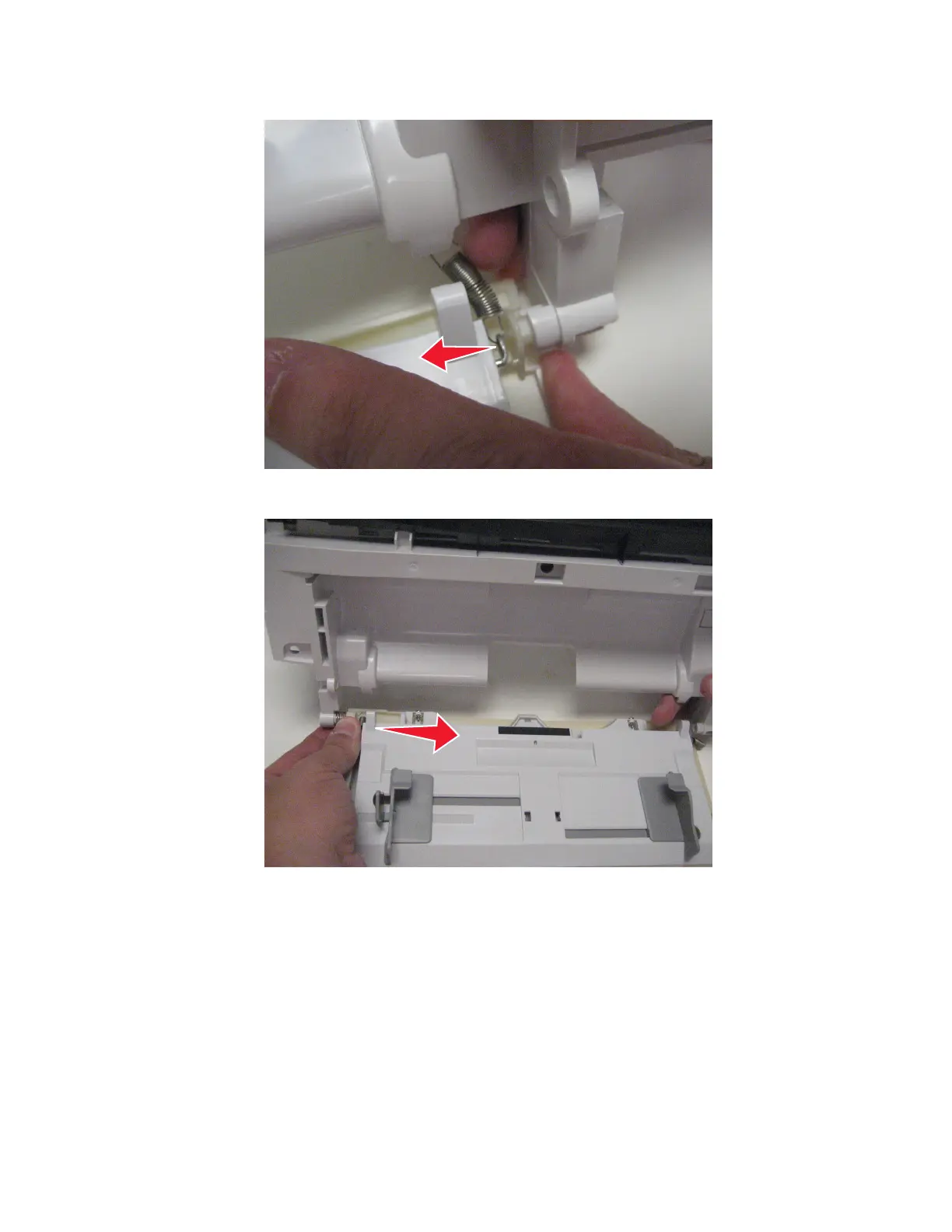

4 Push the MPF tray to the left to release the right pivot on the front access cover.
5 Slide the tray to the right, and remove the MPF tray and spring.
Installation note: Insert the straight end of the spring into the hole on the front access cover before
sliding the MPF tray onto the left pivot of the front access cover.
7016
Repair information
312
