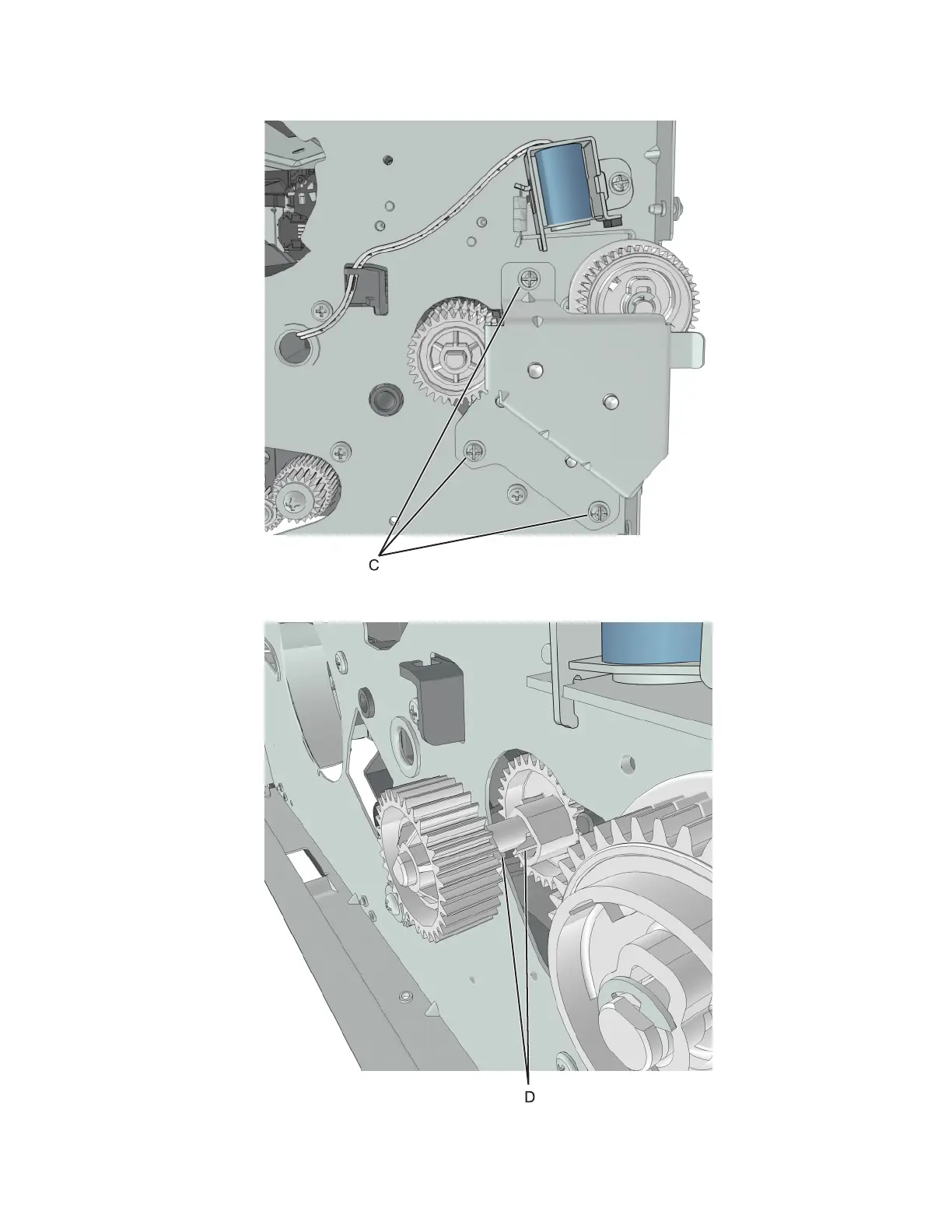

6 Remove the three screws (C), and then remove the MPF gearbox.
7 Release the two latches (D), and then remove the main input drive gears.
7016
Repair information
272
