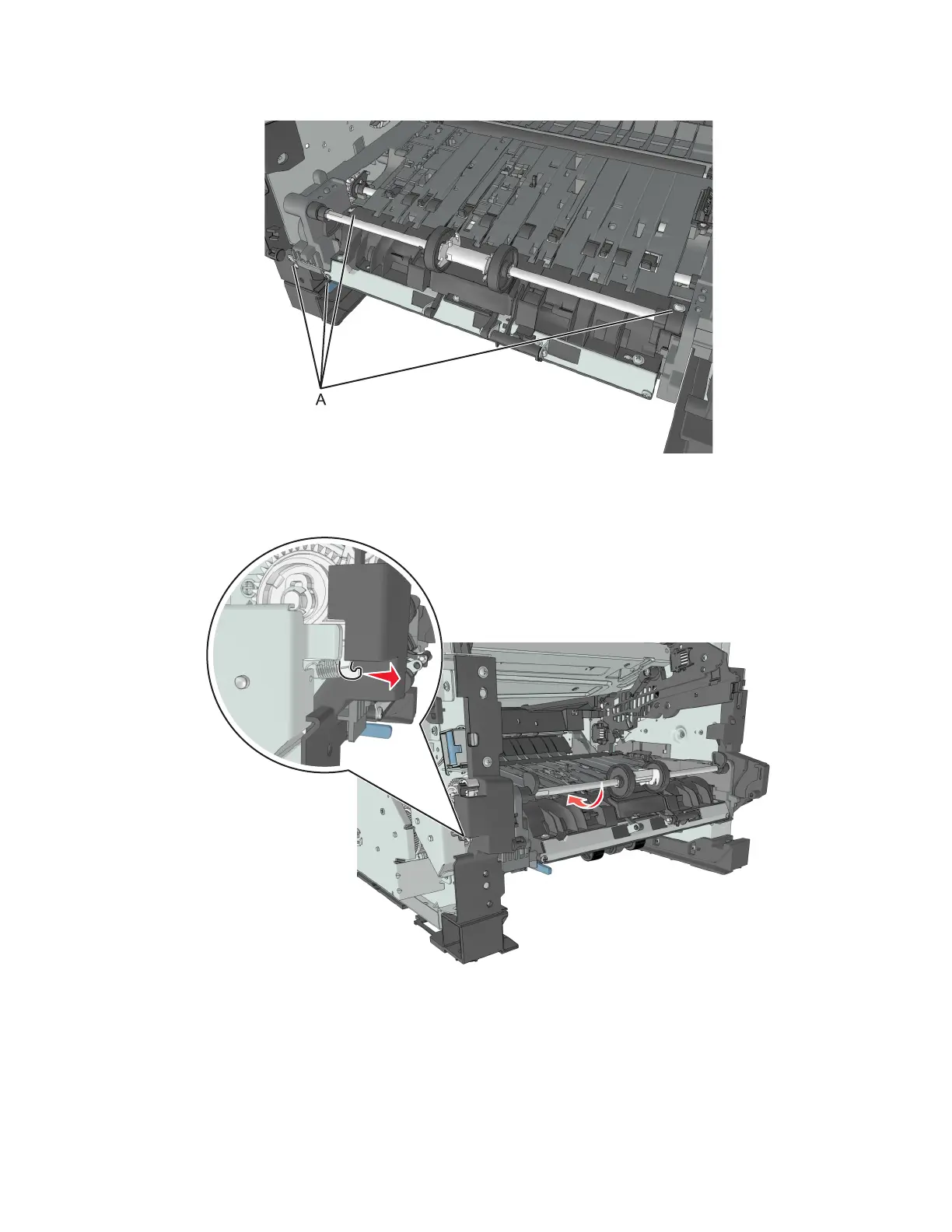

7 Remove the four screws (A).
8 Push and hold the cam restraint to release the MPF shaft.
9 Rotate the MPF shaft inward so that the cams at each end point up.
10 Release the front guide from the guides at each end.
Installation note: The cams at each end of the MPF shaft must point down.
